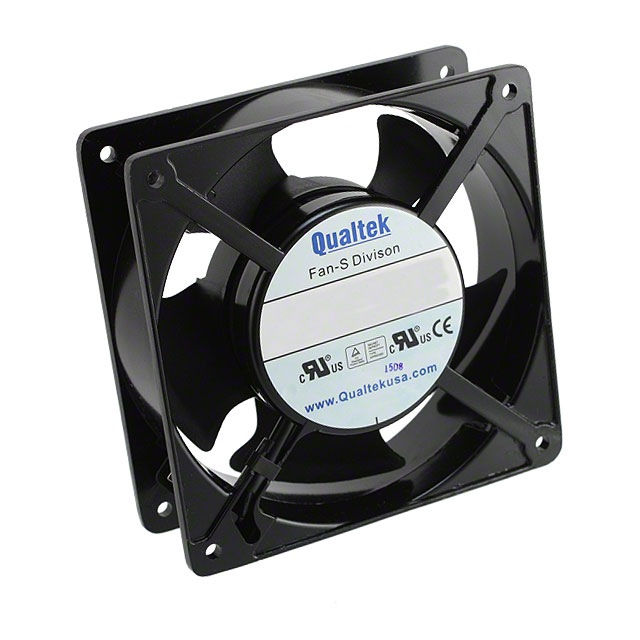

FAA1-12038QBMT31-A

Active

Qualtek

FAN AXIAL 119.5X38.5MM 230VAC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet AC/DC Axial Fans

FAA1-12038QBMT31-A

Active

Qualtek

FAN AXIAL 119.5X38.5MM 230VAC

Deep-Dive with AI

DocumentsDatasheet AC/DC Axial Fans

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FAA1-12038QBMT31-A

Air Flow	2.44 m³/min
Air Flow	87 CFM
Approval Agency	cURus, CE, TUV
Bearing Type	Ball
Current Rating (Amps)	70 mA
Fan Type	Tubeaxial
Material - Blade	Plastic
Material - Frame	Aluminum
Noise	42 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	12.5 W
RPM	2800 RPM
Size / Dimension [x]	119.5 mm
Size / Dimension [z]	119.5 mm
Static Pressure	0.21 in H2O
Static Pressure	52.3 Pa
Termination	2 Terminals
Voltage - Rated	230 VAC
Width [y]	38.5 mm

FAA1-12038 Series

Part	Power (Watts)	Voltage - Rated	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Termination	Static Pressure	Static Pressure	Width [y]	Air Flow	Air Flow	Size / Dimension [z]	Size / Dimension [x]	Material - Frame	Bearing Type	Fan Type	Approval Agency	RPM	Current Rating (Amps)	Material - Blade	Noise	Air Flow	Air Flow
Qualtek FAA1-12038NHHT31-A	14 Watts	115 VAC	70 °C	70 °C	-10 °C	-10 °C	2 Terminals	87.2 Pa	0.35 in H2O	38.5 mm	2.72 mł/min	97 CFM	119.5 mm	119.5 mm	Aluminum	Hydrodynamic	Tubeaxial	CE cURus TUV	2900 RPM	0.19 A	Plastic	44.5 dB
Qualtek FAA1-12038NSAT31-A	8 W	115 VAC	60 °C	60 °C	-10 °C	-10 °C	2 Terminals	14.9 Pa	0.06 in H2O	38.5 mm	1.5 m³/min	53.5 CFM	119.5 mm	119.5 mm	Aluminum	Sleeve	Tubeaxial	CE cURus TUV	1700 RPM	70 mA	Plastic	30.5 dB
Qualtek FAA1-12038QBLT31-A	9.4 W	230 VAC	70 °C	70 °C	-10 °C	-10 °C	2 Terminals	24.9 Pa	0.1 in H2O	38.5 mm	2 m³/min	71.5 CFM	119.5 mm	119.5 mm	Aluminum	Ball	Tubeaxial	CE cURus TUV	2200 RPM	50 mA	Plastic	37.9 dB(A)
Qualtek FAA1-12038QBMT31-A	12.5 W	230 VAC	70 °C	70 °C	-10 °C	-10 °C	2 Terminals	52.3 Pa	0.21 in H2O	38.5 mm	2.44 m³/min		119.5 mm	119.5 mm	Aluminum	Ball	Tubeaxial	CE cURus TUV	2800 RPM	70 mA	Plastic	42 dB	87 CFM
Qualtek FAA1-12038QBKT31-A	19.8 W	230 VAC	70 °C	70 °C	-10 °C	-10 °C	2 Terminals	62.3 Pa	0.25 in H2O	38.5 mm	107 CFM		119.5 mm	119.5 mm	Aluminum	Ball	Tubeaxial	CE cURus TUV	2600 RPM	120 mA	Plastic	48.1 dB(A)		3 mł/min
Qualtek FAA1-12038NBKW31-A	19.2 W	115 VAC	70 °C	70 °C	-10 °C	-10 °C	2 Wire Leads	62.3 Pa	0.25 in H2O	38.5 mm	3 m³/min	107 CFM	119.5 mm	119.5 mm	Aluminum	Ball	Tubeaxial	CE cURus TUV	2600 RPM	0.24 A	Plastic	48.1 dB(A)
Qualtek FAA1-12038QBLW31-A	9.4 W	230 VAC	70 °C	70 °C	-10 °C	-10 °C	2 Wire Leads	24.9 Pa	0.1 in H2O	38.5 mm	2 m³/min	71.5 CFM	119.5 mm	119.5 mm	Aluminum	Ball	Tubeaxial	CE cURus TUV	2200 RPM	50 mA	Plastic	37.9 dB(A)
Qualtek FAA1-12038NSLT31-A	8.7 W	115 VAC	60 °C	60 °C	-10 °C	-10 °C	2 Terminals	24.9 Pa	0.1 in H2O	38.5 mm	2 m³/min	71.5 CFM	119.5 mm	119.5 mm	Aluminum	Sleeve	Tubeaxial	CE cURus TUV	2200 RPM	110 mA	Plastic	37.9 dB(A)
Qualtek FAA1-12038NBKT31-A	19.2 W	115 VAC	70 °C	70 °C	-10 °C	-10 °C	2 Terminals	62.3 Pa	0.25 in H2O	38.5 mm	107 CFM		119.5 mm	119.5 mm	Aluminum	Ball	Tubeaxial	CE cURus TUV	2600 RPM	0.24 A	Plastic	48.1 dB(A)		3 mł/min

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 18.38
		10	$ 16.79
		30	$ 16.15
		50	$ 15.09
		100	$ 13.92
		250	$ 13.71
		500	$ 13.60

Description

General part information

FAA1-12038 Series

Fan Tubeaxial 230VAC Square - 119.5mm L x 119.5mm H Ball 87.0 CFM (2.44mł/min) 2 Terminals
