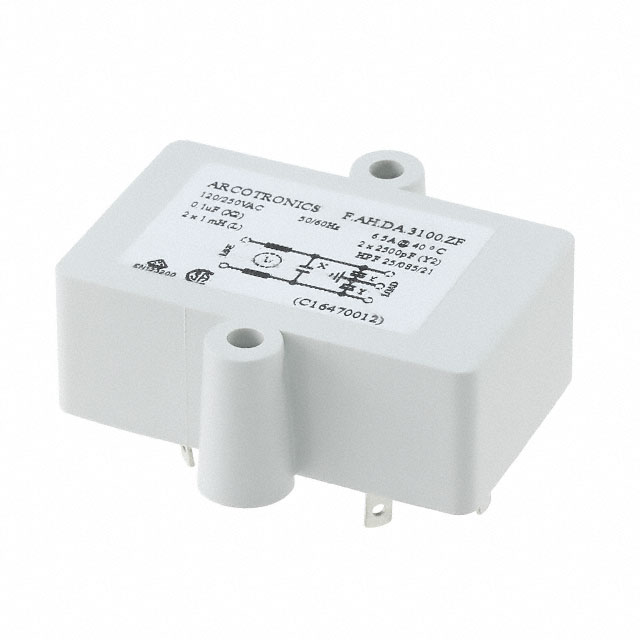

AHDA3100ZF000
ObsoleteKEMET
LINE FILTER 250VAC 6.5A TH
Deep-Dive with AI
Search across all available documentation for this part.
AHDA3100ZF000
ObsoleteKEMET
LINE FILTER 250VAC 6.5A TH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AHDA3100ZF000 |
|---|---|
| Applications | General Purpose |
| Approval Agency | VDE, CSA, UR |
| Configuration | Single Stage |
| Current | 6.5 A |
| Filter Type | Single Phase |
| Frequency - Operating [Max] | 60 Hz |
| Frequency - Operating [Min] | 50 Hz |
| Inductance | 1 mH |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Termination Style | Quick Connect |
| Voltage - Rated AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
AHDA3 Series
Single Phase EMC/EMI Line Filter 6.5 A 250V 50/60Hz Single Stage Quick Connect
Documents
Technical documentation and resources
No documents available
