SMS3PH3TR29

Active

Souriau-Sunbank by Eaton

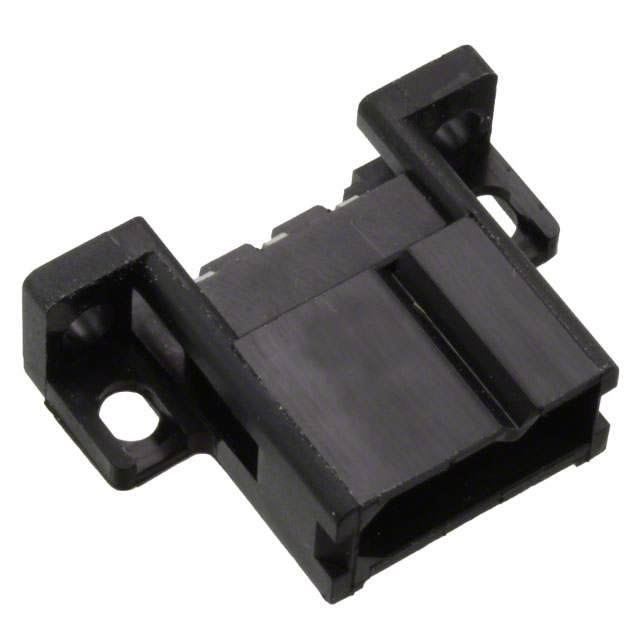

CONN HEADER R/A 3POS 5.08MM

Search across all available documentation for this part.

Active

Souriau-Sunbank by Eaton

CONN HEADER R/A 3POS 5.08MM

Technical Specifications

Parameters and characteristics for this part

Specification	SMS3PH3TR29

Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	1.2 µm
Contact Finish Thickness - Mating	47.2 µin
Contact Length - Post [x]	0.165 in
Contact Length - Post [x]	4.19 mm
Contact Material	Copper Alloy
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	5 A
Fastening Type	Push-Pull
Features	Mounting Flange
Insulation Color	Black
Insulation Height	0.37 in
Insulation Height	9.4 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	5.08 mm
Pitch - Mating	0.2 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

Part	Contact Material	Number of Positions Loaded	Material Flammability Rating	Connector Type	Contact Type	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Number of Rows	Contact Shape	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post [x]	Contact Length - Post [x]	Shrouding	Insulation Color	Termination	Features	Insulation Height	Insulation Height	Style	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post	Contact Length - Post	Contact Finish - Mating	Contact Finish Thickness - Mating
Souriau-Sunbank by Eaton SMS3PH3TR29	Copper Alloy	All	UL94 V-0	Header	Male Pin	Tin	5.08 mm	0.2 in	5 A	1	Circular	Push-Pull	-55 °C	125 °C	0.165 in	4.19 mm	Shrouded - 4 Wall	Black	Solder	Mounting Flange	0.37 in	9.4 mm	Board to Cable/Wire	Through Hole Right Angle	1.2 µm	47.2 µin
Souriau-Sunbank by Eaton SMS3PH-4TR29	Copper Alloy	All	UL94 V-0	Plug	Male Pin	Tin	5.08 mm	0.2 in	5 A	1	Circular	Push-Pull	-55 °C	105 ░C			Shrouded - 4 Wall	Black	Solder	Mounting Flange	0.901 in	22.89 mm	Board to Cable/Wire	Through Hole	1.2 µm	47.2 µin	0.157 in	4 mm
Souriau-Sunbank by Eaton SMS3PH-4D28	Copper Alloy	All	UL94 V-0	Header	Male Pin		5.08 mm	0.2 in	5 A	1	Circular	Push-Pull	-55 °C	125 °C			Shrouded - 4 Wall	Black	Solder	Mounting Flange	0.901 in	22.89 mm	Board to Cable/Wire	Through Hole		0.75 Ám	0.157 in	4 mm	Gold	29.5 Áin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole, Right Angle 3 position 0.200" (5.08mm)
