E3532S.38.03

Active

Prysmian Group

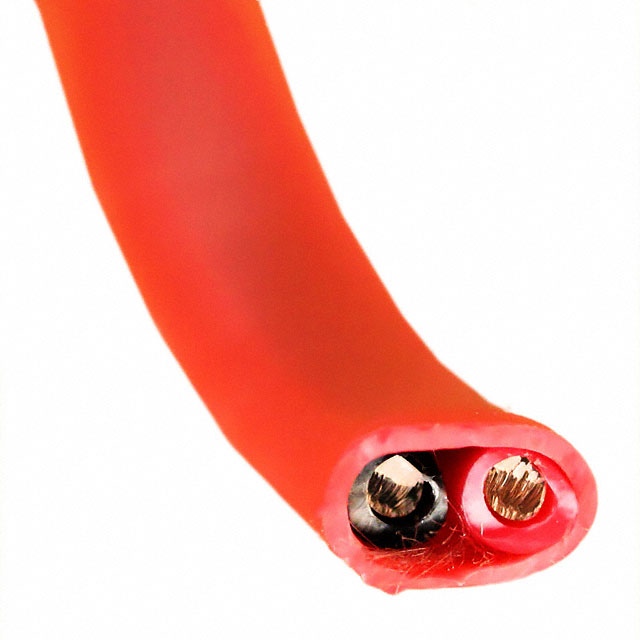

CABLE 2COND 12AWG RED 500'

Search across all available documentation for this part.

Active

Prysmian Group

CABLE 2COND 12AWG RED 500'

Technical Specifications

Parameters and characteristics for this part

Specification	E3532S.38.03

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Annealed Bare
Conductor Strand	Solid
Features	Rip Cord
Jacket (Insulation) Diameter [diameter]	6.2 mm
Jacket (Insulation) Diameter [diameter]	0.244 in
Jacket (Insulation) Material	Plenum, Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.015 in
Jacket (Insulation) Thickness	0.381 mm
Jacket Color	Red
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	2
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	0 °C
Ratings	ASTM B-3
Usage	Alarm, Safety
Voltage	300 V
Wire Gauge	12 AWG

Part	Cable Type	Number of Conductors	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Wire Gauge	Voltage	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length [x]	Length [x]	Conductor Strand	Conductor Material	Ratings	Operating Temperature [Max]	Operating Temperature [Min]	Features	Usage	Conductor Insulation	Jacket Color	Length	Length
Prysmian Group E3532S.38.03	Multi-Conductor	2	0.015 in	0.381 mm	12 AWG	300 V	Plenum Poly-Vinyl Chloride (PVC)	6.2 mm	0.244 in	500 '	152.4 m	Solid	Copper Annealed Bare	ASTM B-3	75 ░C	0 °C	Rip Cord	Alarm Safety	Poly-Vinyl Chloride (PVC)	Red
Prysmian Group E3532S.41.05	Multi-Conductor	2	0.015 in	0.381 mm	12 AWG	300 V	Plenum Poly-Vinyl Chloride (PVC)	6.2 mm	0.244 in			Solid	Copper Annealed Bare	ASTM B-3	75 ░C	0 °C	Rip Cord		Poly-Vinyl Chloride (PVC)	Yellow	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25000	$ 0.49

General part information

2 Conductor Multi-Conductor Cable Red 12 AWG 500.0' (152.4m)

Technical documentation and resources

No documents available
