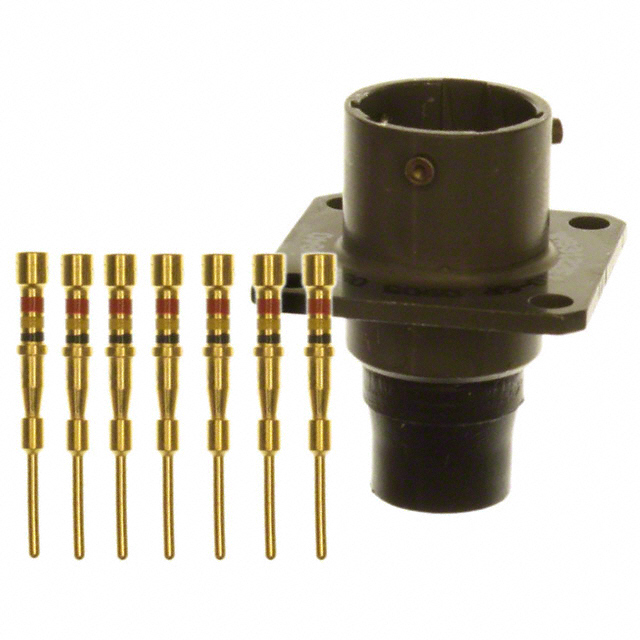

MS3122E-10-6P

Active

Amphenol Industrial Operations

CONN RCPT MALE 6POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MS3122E-10-6P

Active

Amphenol Industrial Operations

CONN RCPT MALE 6POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MS3122E-10-6P

Applications	Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military
Color	Olive Drab
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Fastening Type	Bayonet Lock
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Neoprene
Mounting Feature	Flange
Number of Positions	6
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-26482 Series I
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum
Shell Size - Insert	10-6
Shielding	Unshielded
Termination	Crimp

MS3122E10 Series

Part	Mounting Feature	Qualification	Shell Finish	Insert Material	Contact Size	Fastening Type	Contact Type	Note	Operating Temperature [Min]	Operating Temperature [Max]	Housing Color	Connector Type	Number of Positions	Shielding	Grade	Type	Shell Material	Ingress Protection	Orientation	Contact Shape	Shell Size - Insert	Primary Material	Applications	Contact Finish - Mating	Color	Termination	Contact Material
Amphenol Industrial Operations MS3122E10-6SLC	Flange	MIL-DTL-26482 Series I	Chromate over Cadmium	Neoprene	20	Bayonet Lock	Crimp	Contacts Not Included	-55 °C	125 °C	Olive Drab	Receptacle Housing	6	Unshielded	Military	For Female Sockets	Aluminum	Environment Resistant	N	Circular	10-6
Amphenol Industrial Operations MS3122E-10-6P	Flange	MIL-DTL-26482 Series I	Olive Drab Chromate over Cadmium	Neoprene		Bayonet Lock			-55 °C	125 °C		Male Pins Receptacle	6	Unshielded	Military		Aluminum	Environment Resistant	N		10-6	Metal	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	Gold	Olive Drab	Crimp	Copper Alloy
Amphenol Industrial Operations MS3122E10-6SW	Flange	MIL-DTL-26482 Series I	Olive Drab Chromate over Cadmium	Neoprene		Bayonet Lock			-55 °C	125 °C		Receptacle Female Sockets	6	Unshielded	Military		Aluminum	Environment Resistant	W		10-6	Metal	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	Gold	Olive Drab	Crimp	Copper Alloy
Amphenol Industrial Operations MS3122E10-6PW	Flange	MIL-DTL-26482 Series I	Olive Drab Chromate over Cadmium	Neoprene		Bayonet Lock			-55 °C	125 °C		Male Pins Receptacle	6	Unshielded	Military		Aluminum	Environment Resistant	W		10-6	Metal	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	Gold	Olive Drab	Crimp	Copper Alloy
Amphenol Industrial Operations MS3122E10-6S	Flange	MIL-DTL-26482 Series I	Olive Drab Chromate over Cadmium	Neoprene		Bayonet Lock			-55 °C	125 °C		Receptacle Female Sockets	6	Unshielded	Military		Aluminum	Environment Resistant	N		10-6	Metal	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	Gold	Olive Drab	Crimp	Copper Alloy

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 70.26
		10	$ 64.47
		100	$ 56.62

Description

General part information

MS3122E10 Series

6 Position Circular Connector Receptacle, Male Pins Crimp
