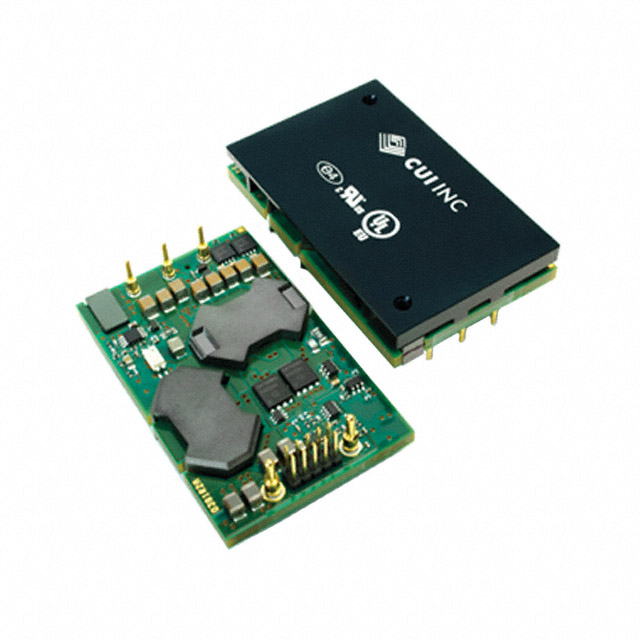

NQB-468DMA-ANH

Obsolete

CUI Inc.

DC DC CONVERTER 12V 468W

Search across all available documentation for this part.

Obsolete

CUI Inc.

DC DC CONVERTER 12V 468W

Technical Specifications

Parameters and characteristics for this part

Specification	NQB-468DMA-ANH

Applications	ITE (Commercial)
Control Features	Active Low, Enable
Current - Output (Max) [Max]	39 A
Efficiency	96.4 %
Features	OTP, Remote On/Off, OVP, UVLO, OCP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	15-DIP Module, 1/4 Brick
Power (Watts)	468 W
Size / Dimension [x]	57.9 mm
Size / Dimension [x]	2.28 in
Size / Dimension [y]	1.45 in
Size / Dimension [y]	36.8 mm
Size / Dimension [z]	13.2 mm
Size / Dimension [z]	0.52 "
Type	Intermediate Bus Converter, Digital
Voltage - Input (Max) [Max]	60 V
Voltage - Input (Min) [Min]	40 V
Voltage - Isolation	2250 VDC
Voltage - Output 1	12 V

Part	Control Features	Efficiency	Voltage - Input (Max) [Max]	Power (Watts)	Current - Output (Max) [Max]	Applications	Features	Voltage - Input (Min) [Min]	Mounting Type	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Package / Case	Number of Outputs	Type	Voltage - Output 1
CUI Inc. NQB-468DMA-ANH	Active Low Enable	96.4 %	60 V	468 W	39 A	ITE (Commercial)	OCP OTP OVP Remote On/Off UVLO	40 V	Through Hole	2250 VDC	125 °C	-40 °C	13.2 mm	57.9 mm	0.52 "	1.45 in	36.8 mm	2.28 in	15-DIP Module 1/4 Brick	1	Intermediate Bus Converter Digital	12 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Intermediate Bus Converter, Digital DC DC Converter 1 Output 12V 39A 40V - 60V Input
