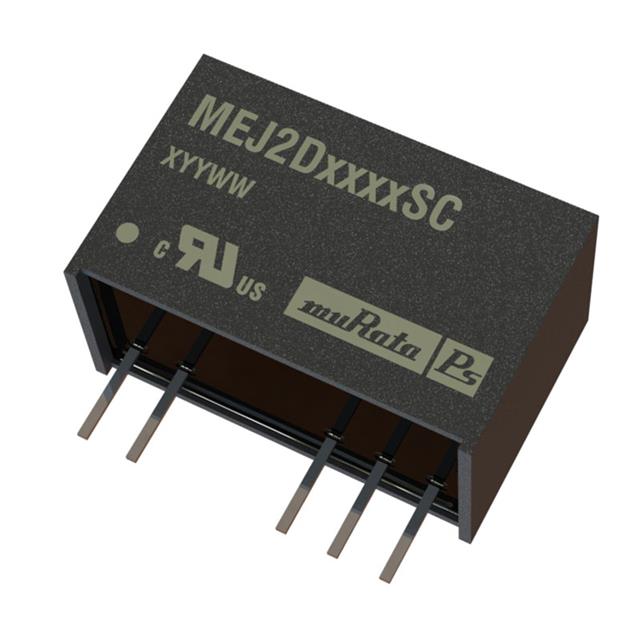

MEJ2D0515SC

Active

Murata Power Solutions Inc.

DC-DC REGULATED POWER SUPPLY MODULE,

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

DC-DC REGULATED POWER SUPPLY MODULE,

Technical Specifications

Parameters and characteristics for this part

Part	Power (Watts)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Output 2	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Voltage - Isolation	Efficiency	Type	Package / Case	Voltage - Input (Max) [Max]	Voltage - Output 1	Number of Outputs	Mounting Type	Voltage - Input (Min) [Min]	Current - Output (Max)	Current - Output (Max)
Murata Power Solutions Inc. MEJ2D0505SC	2 W	0.39 "	19.7 mm	12.7 mm	0.5 in	0.77 in	10 mm	-5 V	85 °C	-40 °C	ITE (Commercial) Medical	5.2 kV	76 %	Isolated Module	7-SIP Module 5 Leads	5.5 V	5 V	2	Through Hole	4.5 V
Murata Power Solutions Inc. MEJ2D0515SC	2 W	0.39 "	19.7 mm	12.7 mm	0.5 in	0.77 in	10 mm	-15 V	85 °C	-40 °C	ITE (Commercial) Medical	5.2 kV	79 %	Isolated Module	7-SIP Module 5 Leads	5.5 V	15 V	2	Through Hole	4.5 V	67 mA	67 mA
Murata Power Solutions Inc. MEJ2D0503SC	2 W	0.39 "	19.7 mm	12.7 mm	0.5 in	0.77 in	10 mm	-3.3 V	85 °C	-40 °C	ITE (Commercial) Medical	5.2 kV	71 %	Isolated Module	7-SIP Module 5 Leads	5.5 V	3.3 V	2	Through Hole	4.5 V	303 mA	303 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 2 Output 15V -15V 67mA, 67mA 4.5V - 5.5V Input
