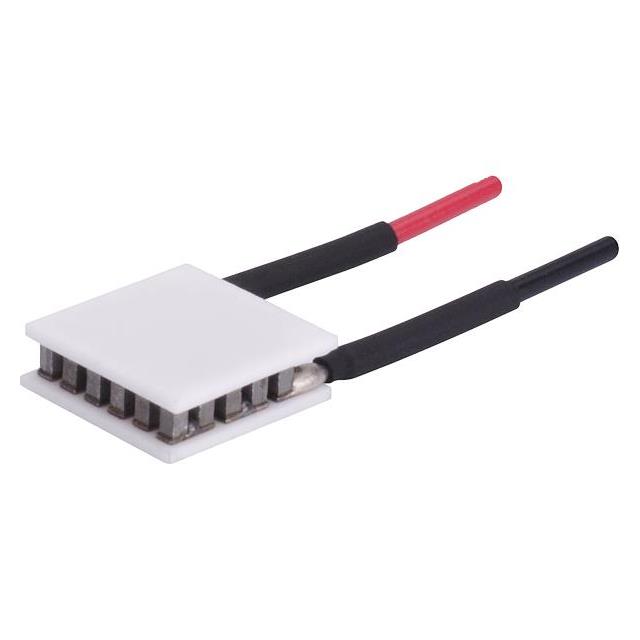

43240-501
ActiveLaird Thermal Systems, Inc.
PELTIER CP10,17,06,L,W4.5
Deep-Dive with AI
Search across all available documentation for this part.
43240-501
ActiveLaird Thermal Systems, Inc.
PELTIER CP10,17,06,L,W4.5
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 43240-501 |
|---|---|
| Current - Max [Max] | 3 A |
| Delta Tmax @ Th | 67 °C |
| Features | Lead Wires, Non-Sealed |
| Height [z] | 3.58 mm |
| Number of Stages | 1 |
| Operating Temperature | 80 °C |
| Qmax @ Th | 3.5 W |
| Resistance | 0.58 Ohms |
| Size / Dimension | Square |
| Size / Dimension [x] | 11.99 mm |
| Size / Dimension [y] | 11.99 mm |
| Voltage - Max [Max] | 1.9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 24.40 | |
| 20 | $ 22.33 | |||
| 100 | $ 20.54 | |||
Description
General part information
43240 Series
Peltier Module 3.5W @ 25°C 3 A 80°C
Documents
Technical documentation and resources
