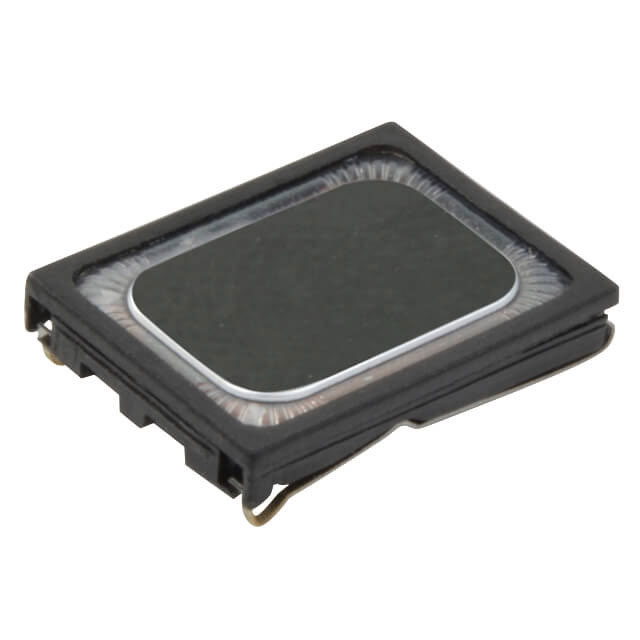

CMS-15113-078S

Active

CUI Devices

SPEAKER 8OHM 700MW TOP PORT 91DB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CMS-15113-078S

Active

CUI Devices

SPEAKER 8OHM 700MW TOP PORT 91DB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CMS-15113-078S

Efficiency - dBA	91 dBA
Efficiency - Testing	700 mW, 100 mm
Efficiency - Type	Sound Pressure Level (SPL)
Frequency - Self Resonant	700 Hz
Frequency Range [Max]	20 kHz
Frequency Range [Min]	100 Hz
Height - Seated (Max)	3 mm
Height - Seated (Max) [Max]	0.118 in
Impedance	8 Ohms
Material - Cone	Polyester, Polyethylene Terephthalate (PET)
Material - Magnet	Nd-Fe-B
Port Location	Top
Power - Max [Max]	1 W
Power - Rated	700 mW
Shape	Rectangular
Size / Dimension [x]	15 mm
Size / Dimension [x]	0.591 in
Size / Dimension [y]	11 mm
Size / Dimension [y]	0.433 in
Technology	Magnetic
Termination	Spring Type
Type	General Purpose

CMS-151 Series

Part	Material - Magnet	Efficiency - Type	Power - Max [Max]	Port Location	Termination	Type	Material - Cone	Efficiency - Testing	Power - Rated	Operating Temperature [Min]	Operating Temperature [Max]	Shape	Frequency - Self Resonant	Efficiency - dBA	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Impedance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Technology	Frequency Range [Max]	Frequency Range [Min]	Ingress Protection	Efficiency - Testing	Height - Seated (Max)	Height - Seated (Max) [Max]	Distortion Rating
CUI Devices CMS-151125-078L100A	Nd-Fe-B	Sound Pressure Level (SPL)	1 W	Top	Wire Leads with Connector	General Purpose	Polyester Polyethylene Terephthalate (PET)	100 mm 700 mW	700 mW	-20 C	70 °C	Rectangular	700 Hz	91 dBA	11 mm	0.433 in	15 mm	0.591 in	8 Ohms	2.5 mm	0.098 in	Magnetic	20 kHz	100 Hz
CUI Devices CMS-151135-076S-67	Nd-Fe-B	Sound Pressure Level (SPL)	1 W	Top	Spring Type	General Purpose	Polyester Polyethylene Terephthalate (PET)	100 mm 700 mW	700 mW			Rectangular	600 Hz	92 dBA	11 mm	0.433 in	15 mm	0.591 in	6 Ohms	3.5 mm	0.138 in	Magnetic	20 kHz	100 Hz	IP67 - Dust Tight Waterproof
CUI Devices CMS-15118E-SP	Nd-Fe-B	Sound Pressure Level (SPL)	1 W	Top	Spring Type	Low Profile	Polyester Polyethylene Terephthalate (PET)		0.8 W			Rectangular	550 Hz	90.5 dBA	11 mm	0.433 in	15 mm	0.591 in	8 Ohms	2.5 mm	0.098 in	Magnetic	10 kHz	440 Hz		800mW/100mm
CUI Devices CMS-15113-078S	Nd-Fe-B	Sound Pressure Level (SPL)	1 W	Top	Spring Type	General Purpose	Polyester Polyethylene Terephthalate (PET)	100 mm 700 mW	700 mW			Rectangular	700 Hz	91 dBA	11 mm	0.433 in	15 mm	0.591 in	8 Ohms			Magnetic	20 kHz	100 Hz			3 mm	0.118 in
CUI Devices CMS-151103-16SP	Nd-Fe-B	Sound Pressure Level (SPL)	1 W	Top	Solder Pads	General Purpose	Polyetheretherketone (PEEK)	100 mm 700 mW	700 mW	-20 C	70 °C	Rectangular	600 Hz	93 dBA	11 mm	0.433 in	15 mm	0.591 in	6 Ohms			Magnetic	20 kHz	100 Hz			3 mm	0.118 in	10 % 15 %
CUI Devices CMS-151125-076L100A	Nd-Fe-B	Sound Pressure Level (SPL)	1 W	Top	Wire Leads with Connector	General Purpose	Polyester Polyethylene Terephthalate (PET)	100 mm 700 mW	700 mW	-20 C	70 °C	Rectangular	550 Hz	92.5 dBA	11 mm	0.433 in	15 mm	0.591 in	6 Ohms	2.5 mm	0.098 in	Magnetic	20 kHz	100 Hz
CUI Devices CMS-15113-076L100A	Nd-Fe-B	Sound Pressure Level (SPL)	1 W	Top	Wire Leads with Connector	General Purpose	Polyester Polyethylene Terephthalate (PET)	100 mm 700 mW	700 mW	-20 C	70 °C	Rectangular	700 Hz	92 dBA	11 mm	0.433 in	15 mm	0.591 in	6 Ohms			Magnetic	20 kHz	100 Hz			3 mm	0.118 in
CUI Devices CMS-151135-078L100B	Nd-Fe-B	Sound Pressure Level (SPL)	1 W	Top	Wire Leads with Connector	General Purpose	Polyester Polyethylene Terephthalate (PET)	100 mm 700 mW	700 mW	-20 C	70 °C	Rectangular	550 Hz	91 dBA	11 mm	0.433 in	15 mm	0.591 in	8 Ohms	3.5 mm	0.138 in	Magnetic	20 kHz	100 Hz
CUI Devices CMS-151125-076L100B	Nd-Fe-B	Sound Pressure Level (SPL)	1 W	Top	Wire Leads with Connector	General Purpose	Polyester Polyethylene Terephthalate (PET)	100 mm 700 mW	700 mW	-20 C	70 °C	Rectangular	550 Hz	92.5 dBA	11 mm	0.433 in	15 mm	0.591 in	6 Ohms	2.5 mm	0.098 in	Magnetic	20 kHz	100 Hz
CUI Devices CMS-151135-078L100B-67	Nd-Fe-B	Sound Pressure Level (SPL)	1 W	Top	Wire Leads with Connector	General Purpose	Polyester Polyethylene Terephthalate (PET)	100 mm 700 mW	700 mW	-20 C	70 °C	Rectangular	550 Hz	91 dBA	11 mm	0.433 in	15 mm	0.591 in	8 Ohms	3.5 mm	0.138 in	Magnetic	20 kHz	100 Hz	IP67 - Dust Tight Waterproof

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 2.19
		10	$ 1.78
		25	$ 1.64
		40	$ 1.58
		100	$ 1.45
		300	$ 1.32
		500	$ 1.26
		1000	$ 1.19
		4900	$ 1.15

Description

General part information

CMS-151 Series

8 Ohms General Purpose Speaker 700 mW 100 Hz ~ 20 kHz Top Rectangular
