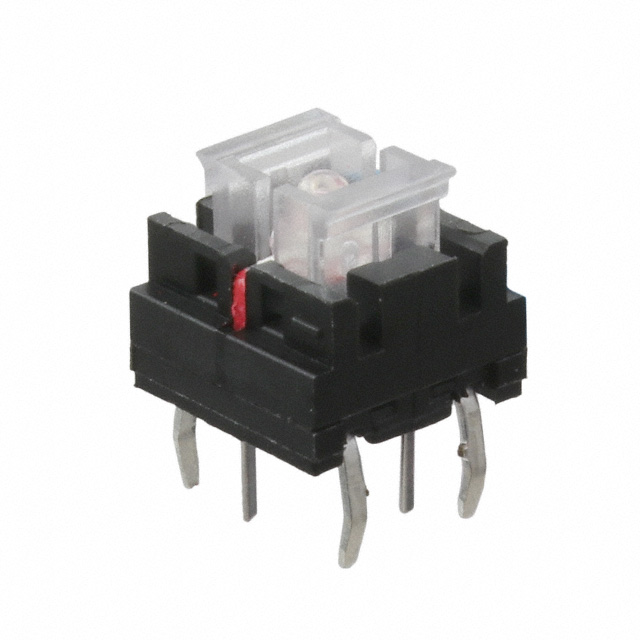

TL6275BA2PQUR

Active

E-Switch

SWITCH TACTILE SPST-NO 0.05A 12V

Search across all available documentation for this part.

Active

E-Switch

SWITCH TACTILE SPST-NO 0.05A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	TL6275BA2PQUR

Actuator Height off PCB, Vertical [z]	16.2 mm
Actuator Orientation	Top Actuated
Actuator Type	Round Button
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC
Illumination	Illuminated
Illumination Type, Color	Red, LED
Mechanical Life	100000 Cycles
Mounting Type	Through Hole
Operating Force	350 gf
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Outline [x]	8 mm
Outline [y]	8 mm
Switch Function	Off-Mom
Switch Travel	0.25 mm
Termination Style	PC Pin

Part	Illumination Type, Color	Switch Travel	Actuator Orientation	Switch Function	Operating Force	Circuit	Illumination	Contact Rating @ Voltage	Outline [y]	Outline [x]	Termination Style	Mounting Type	Mechanical Life	Actuator Type	Actuator Height off PCB, Vertical [z]	Operating Temperature [Max]	Operating Temperature [Min]
E-Switch TL6275BA2PQUR	LED Red	0.25 mm	Top Actuated	Off-Mom	350 gf	SPST-NO	Illuminated	0.05 A 12 VDC	8 mm	8 mm	PC Pin	Through Hole	100000 Cycles	Round Button	16.2 mm	70 °C	-25 °C
E-Switch TL6275BA2PQRG	Green LED	0.25 mm	Top Actuated	Off-Mom	350 gf	SPST-NO	Illuminated	0.05 A 12 VDC	8 mm	8 mm	PC Pin	Through Hole	100000 Cycles	Round Button	11.15 mm	70 °C	-25 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1040	$ 3.33

General part information

Tactile Switch SPST-NO Top Actuated Through Hole
