ANT-2.4-CW-RCS-SMA

Active

TE Connectivity Linx

RF ANT 2.4GHZ WHIP RA SMA MALE

Deep-Dive with AI

Search across all available documentation for this part.

ANT-2.4-CW-RCS-SMA

Active

TE Connectivity Linx

RF ANT 2.4GHZ WHIP RA SMA MALE

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ANT-2.4-CW-RCS-SMA

Applications	Thread, Zigbee™, Wi-Fi, Bluetooth
Frequency Range [Max]	2.5 GHz
Frequency Range [Min]	2.35 GHz
Height (Max) [Max]	53.5 mm
Height (Max) [Max] [z]	2.106 in
Mounting Type	Connector Mount
Number of Bands	1
RF Family/Standard	WiFi, Bluetooth, 802.15.4
VSWR	1.9

ANT-2.4 Series

Part	Gain	Frequency Range [Min]	Frequency Range [Max]	Mounting Type	Height (Max)	Height (Max) [Max]	RF Family/Standard	Termination	VSWR	Number of Bands	Applications	Height (Max) [Max]	Antenna Type	Power - Max [Max]	Return Loss	Features	Features	Height (Max) [Max]	Height (Max) [Max] [z]	Frequency (Center/Band)
TE Connectivity Linx ANT-2.4-JJB-RA	3.3 dBi	2.39 GHz	2.48 GHz	Through Hole	14.5 mm	0.571 in	802.15.4 Bluetooth WiFi	Solder	2	1	Bluetooth Thread Wi-Fi Zigbee™
TE Connectivity Linx ANT-2.4-LCW-RPS	2.8 dBi	2.4 GHz	2.5 GHz	Connector Mount		3.272 in		RP-SMA Male	1.9	1	ISM U-NII WiFi WLAN	83.1 mm	Tilt Whip
TE Connectivity Linx ANT-2.4-CW-RH-SMA	-9 dBi	2.39 GHz	2.49 GHz	Connector Mount	27 mm	1.063 in	802.15.4 Bluetooth WiFi		2	1	Bluetooth Thread Wi-Fi Zigbee™		Whip Straight
TE Connectivity Linx ANT-2.4-LPW-125	2.8 dBi	2.4 GHz	2.4835 GHz				Bluetooth WiFi			1	Bluetooth ISM Wi-Fi WLAN Zigbee™			10 W	-14.6 dB	Cable	125 mm
TE Connectivity Linx ANT-2.4-JJB-ST	-1.5 dBi	2.39 GHz	2.48 GHz	Through Hole			802.15.4 Bluetooth WiFi	Solder	2	1	Bluetooth Thread Wi-Fi Zigbee™		Whip Straight
TE Connectivity Linx ANT-2.4-OC-LG-RPS	4 dBi	2.39 GHz	2.55 GHz	Connector Mount	193.5 mm	7.618 in	802.15.4 Bluetooth WiFi	RP-SMA Male	2	1	Bluetooth Thread Wi-Fi Zigbee™		Tilt Whip
TE Connectivity Linx ANT-2.4-USP	3.8 dBi	2.37 GHz	2.54 GHz	Surface Mount			802.15.4 Bluetooth WiFi	Solder	2	1	Bluetooth Thread Wi-Fi Zigbee™	0.062 in	Chip					1.57 mm
TE Connectivity Linx ANT-2.4-CW-RCT-SS	2.2 dBi	2.4 GHz	2.5 GHz	Connector Mount		4.449 in	802.15.4 Bluetooth WiFi		1.9	1	Bluetooth Thread Wi-Fi Zigbee™	113 mm	Tilt Whip
TE Connectivity Linx ANT-2.4-WRT-SMA	3.4 dBi	2.4 GHz	2.5 GHz		11 mm		802.15.4 Bluetooth WiFi		1.9	1	Bluetooth Thread Wi-Fi Zigbee™		Dome			Cable	216 mm		0.433 in	2.4 GHz 2.5 GHz
TE Connectivity Linx ANT-2.4-CW-RCS-SMA		2.35 GHz	2.5 GHz	Connector Mount			802.15.4 Bluetooth WiFi		1.9	1	Bluetooth Thread Wi-Fi Zigbee™	53.5 mm							2.106 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.14
		10	$ 7.67
		25	$ 7.44
		100	$ 7.21
		250	$ 6.84
		500	$ 6.48
		1000	$ 6.31

Description

General part information

ANT-2.4 Series

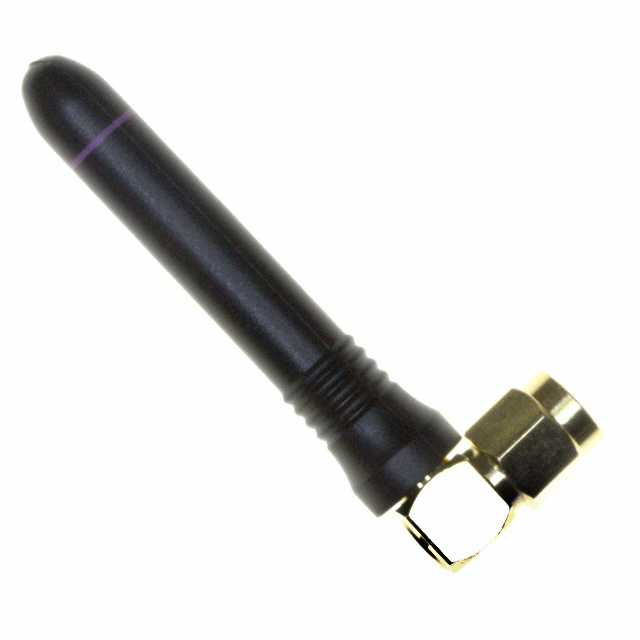

RF ANTENNA Bluetooth, Thread, Wi-Fi, Zigbee™ Whip, Right Angle SMA Male Connector Mount
