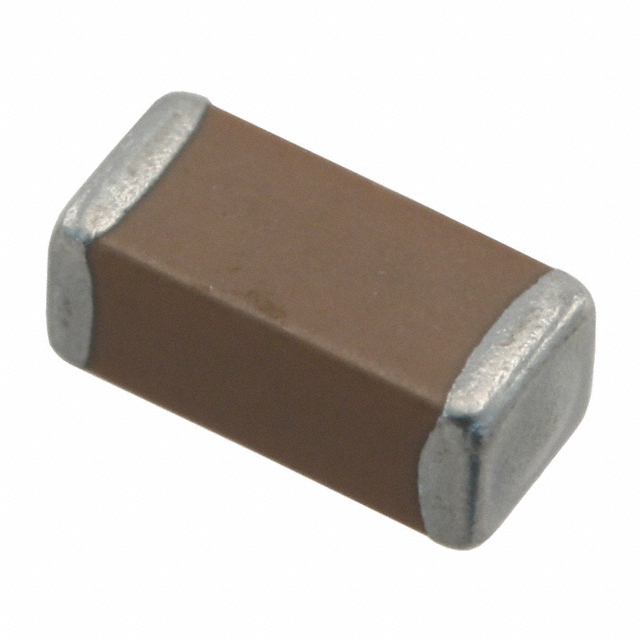

SCDP502W331K4GF001E

Active

JOHANSON DIELECTRICS

CAP CER 330PF 250V X7R 1808

Search across all available documentation for this part.

Active

JOHANSON DIELECTRICS

CAP CER 330PF 250V X7R 1808

Technical Specifications

Parameters and characteristics for this part

Part	Temperature Coefficient	Mounting Type	Package / Case	Package / Case	Capacitance	Applications	Tolerance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Thickness (Max)	Thickness (Max) [Max]	Ratings [custom]	Ratings [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated	Features
JOHANSON DIELECTRICS SCDP502W221K4GV001E	X7R	MLCC Surface Mount	1808	4520 Metric	220 pF	Safety	10 %	0.185 in	2.03 mm	4.7 mm	0.08 in	2.16 mm	0.085 in	2	1	-55 °C	125 °C	250 VAC
JOHANSON DIELECTRICS SCDP502W331K4GF001E	X7R	MLCC Surface Mount	1808	4520 Metric	330 pF	Boardflex Sensitive Safety	10 %	0.185 in	2.03 mm	4.7 mm	0.08 in	2.16 mm	0.085 in	2	1	-55 °C	125 °C	250 VAC	Soft Termination
JOHANSON DIELECTRICS SCDP502W681K4GV001E	X7R	MLCC Surface Mount	1808	4520 Metric	680 pF	Safety	10 %	0.185 in	2.03 mm	4.7 mm	0.08 in	2.16 mm	0.085 in	2	1	-55 °C	125 °C	250 VAC
JOHANSON DIELECTRICS SCDP502W102K4GV001E	X7R	MLCC Surface Mount	1808	4520 Metric	0.001 µF	Safety	10 %	0.185 in	2.03 mm	4.7 mm	0.08 in	2.16 mm	0.085 in	2	1	-55 °C	125 °C	250 VAC
JOHANSON DIELECTRICS SCDP502G180J4GV001E	C0G NP0	MLCC Surface Mount	1808	4520 Metric	18 pF	Safety	5 %	0.185 in	2.03 mm	4.7 mm	0.08 in	2.16 mm	0.085 in	2	1	-55 °C	125 °C	250 VAC
JOHANSON DIELECTRICS SCDP502G100K4GV001E	C0G NP0	MLCC Surface Mount	1808	4520 Metric	10 pF	Safety	10 %	0.185 in	2.03 mm	4.7 mm	0.08 in	2.16 mm	0.085 in	2	1	-55 °C	125 °C	250 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

330 pF ±10% 250VAC Ceramic Capacitor X7R 1808 (4520 Metric)

Technical documentation and resources

No documents available
