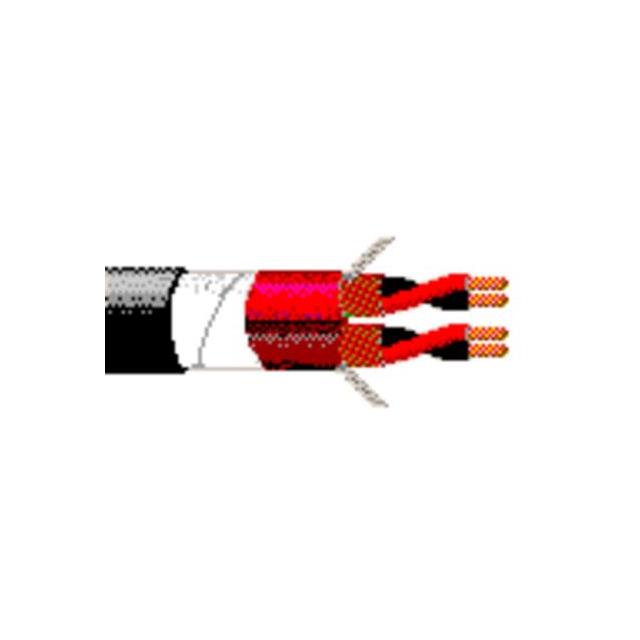

1908A B59250

Active

Belden Inc.

8 #24 JKTD PR PVC

Search across all available documentation for this part.

Active

Belden Inc.

8 #24 JKTD PR PVC

Technical Specifications

Parameters and characteristics for this part

Specification	1908A B59250

Cable Type	Multi-Pair
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Bare
Conductor Strand [custom]	41 strands
Conductor Strand [custom]	40
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.482 in
Jacket (Insulation) Diameter [diameter]	12.24 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	1.27 mm
Jacket (Insulation) Thickness	0.05 in
Jacket Color	Black
Length	3000 "
Length	76.2 m
Number of Conductors	16
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Shield Coverage	95 %
Shield Material	Copper, Bare
Shield Type	Braid
Usage	Audio
Voltage	300 V
Wire Gauge	24 AWG

Part	Jacket Color	Operating Temperature [Min]	Operating Temperature [Max]	Features	Shield Type	Conductor Insulation	Shield Coverage	Voltage	Number of Conductors	Conductor Strand [custom]	Conductor Strand [custom]	Length	Length	Jacket (Insulation) Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Cable Type	Wire Gauge	Usage	Shield Material	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]
Belden Inc. 1908A B59250	Black	-20 C	60 °C	Drain Wire	Braid	Polypropylene (PP)	95 %	300 V	16	41 strands	40	3000 "	76.2 m	Poly-Vinyl Chloride (PVC)	1.27 mm	0.05 in	Multi-Pair	24 AWG	Audio	Copper Bare	Copper Bare	0.482 in	12.24 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

16 (8 Pair) Conductor Multi-Pair Cable Black 24 AWG Braid 250.0' (76.2m)
