7-340-1PP-BA
ActiveTusonix a Subsidiary of CTS Electronic Components

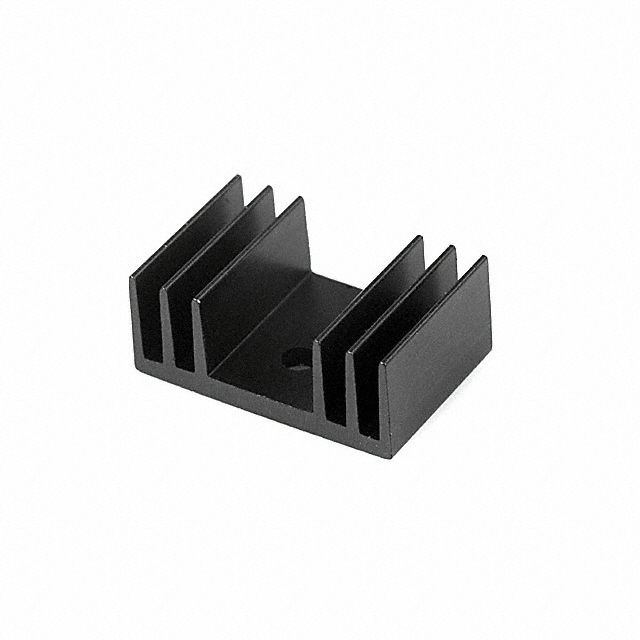

HEATSINK PWR VERT BLACK TO-220
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
7-340-1PP-BA
ActiveTusonix a Subsidiary of CTS Electronic Components
HEATSINK PWR VERT BLACK TO-220
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 7-340-1PP-BA |
|---|---|
| Attachment Method | Bolt On |
| Fin Height [z] | 0.46 in |
| Fin Height [z] | 11.68 mm |
| Length | 19.05 mm |
| Length | 0.75 in |
| Material | Aluminum |
| Material Finish | Black Anodized |
| Package Cooled | TO-220 |
| Power Dissipation @ Temperature Rise | 40 °C, 3 W |
| Shape | Rectangular, Fins |
| Thermal Resistance @ Natural | 15 °C/W |
| Type | Board Level |
| Width [y] | 29.21 mm |
| Width [y] | 1.15 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 1.97 | |
| 10 | $ 1.92 | |||
| 25 | $ 1.87 | |||
| 50 | $ 1.76 | |||
| 100 | $ 1.66 | |||
| 250 | $ 1.56 | |||
| 500 | $ 1.50 | |||
| 1000 | $ 1.35 | |||
| 5000 | $ 1.32 | |||
Description
General part information
7-340-1 Series
Heat Sink TO-220 Aluminum 3.0W @ 40°C Board Level
