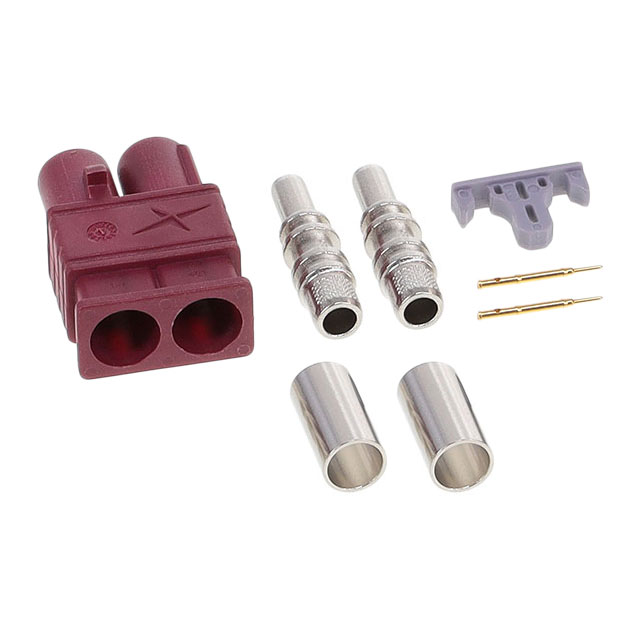

FKDMDG
ActiveTAOGLAS
DUAL FAKRA CODE D SMB(M)ST_ FOR
Deep-Dive with AI
Search across all available documentation for this part.
FKDMDG
ActiveTAOGLAS
DUAL FAKRA CODE D SMB(M)ST_ FOR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FKDMDG |
|---|---|
| Cable Group | RG-174, 316 |
| Connector Style | SMB, Fakra |
| Connector Type | Male Pin, Plug |
| Contact Termination | Crimp |
| Fastening Type | Locking Ramp |
| Features | Code D |
| Frequency - Max [Max] | 6000 MHz |
| Housing Color | Bordeaux, Violet |
| Impedance | 50 Ohms |
| Mating Cycles | 25 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Shield Termination | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 5.89 | |
| 100 | $ 5.55 | |||
| 1000 | $ 5.17 | |||
Description
General part information
FKDMD Series
SMB, Fakra Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
