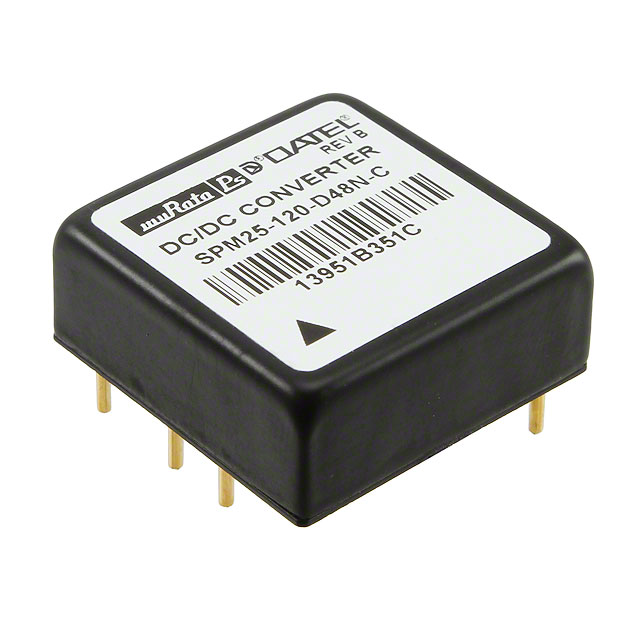

SPM25-120-D48N-C

Obsolete

Murata Power Solutions Inc.

DC DC CONVERTER 12V 25W

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

DC DC CONVERTER 12V 25W

Technical Specifications

Parameters and characteristics for this part

Specification	SPM25-120-D48N-C

Applications	ITE (Commercial)
Control Features	Active Low, Enable
Current - Output (Max) [Max]	2.1 A
Efficiency	87 %
Features	OCP, UVLO, OTP, Remote On/Off, SCP, OVP
Mounting Type	Through Hole
Number of Outputs	1
Package / Case	6-DIP Module
Power (Watts)	25 W
Size / Dimension [x]	1 in
Size / Dimension [x]	25.4 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [z]	0.41 "
Size / Dimension [z]	10.4 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	36 V
Voltage - Isolation	1.6 kV
Voltage - Output 1	12 V

Part	Power (Watts)	Mounting Type	Efficiency	Voltage - Output 1	Features	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Type	Voltage - Input (Min) [Min]	Applications	Voltage - Isolation	Number of Outputs	Package / Case	Control Features	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]
Murata Power Solutions Inc. SPM25-120-D48N-C	25 W	Through Hole	87 %	12 V	OCP OTP OVP Remote On/Off SCP UVLO	0.41 "	25.4 mm	1 in	25.4 mm	10.4 mm	25.4 mm	Isolated Module	36 V	ITE (Commercial)	1.6 kV	1	6-DIP Module	Active Low Enable	75 V	2.1 A
Murata Power Solutions Inc. SPM25-120-D48P-C	25 W	Through Hole	87 %	12 V	OCP OTP OVP Remote On/Off SCP UVLO	0.41 "	25.4 mm	1 in	25.4 mm	10.4 mm	25.4 mm	Isolated Module	36 V	ITE (Commercial)	1.6 kV	1	6-DIP Module	Active High Enable	75 V	2.1 A	85 °C	-40 °C
Murata Power Solutions Inc. SPM25-120-D48-C	25 W	Through Hole	87 %	12 V	OCP OTP OVP SCP UVLO	0.41 "	25.4 mm	1 in	25.4 mm	10.4 mm	25.4 mm	Isolated Module	36 V	ITE (Commercial)	1.6 kV	1	6-DIP Module		75 V	2.1 A	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 1 Output 12V 2.1A 36V - 75V Input
