4606TZ

Obsolete

ebm-papst Inc.

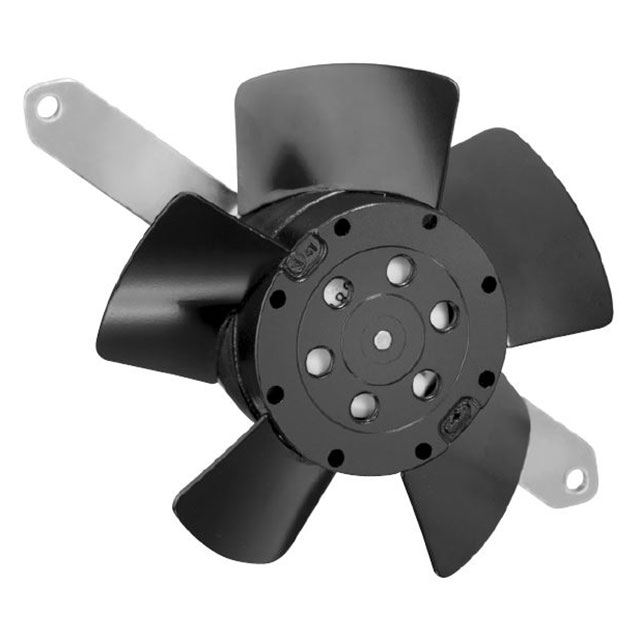

FAN AXIAL 108X37MM 115VAC WIRE

Search across all available documentation for this part.

Obsolete

ebm-papst Inc.

FAN AXIAL 108X37MM 115VAC WIRE

Technical Specifications

Parameters and characteristics for this part

Part	Width [y]	Material - Blade	Air Flow	Air Flow	Material - Frame	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Termination	Bearing Type	Lifetime @ Temp.	Power (Watts)	Size / Dimension [y]	Size / Dimension [x]	Voltage - Rated	Noise	Fan Type	Approval Agency	RPM	Size / Dimension [diameter]	Weight	Weight	Ingress Protection
ebm-papst Inc. 4606N	38 mm	Metal	106 CFM	2.97 mł/min	Metal	-40 °C	-40 °C	90 °C	90 °C	2 Terminals	Ball	40000 Hrs	18 W	119 mm	119 mm	115 VAC	51 dB(A)	Tubeaxial	CE CSA UL VDE	3100 RPM
ebm-papst Inc. 4606TZ	37 mm	Metal	82.4 CFM	2.31 m³/min	Metal	-40 °C	-40 °C	75 ░C	75 °C	2 Wire Leads	Ball	40000 Hrs	18 W			115 VAC	45 dB(A)	Tubeaxial	CE CSA UL VDE	2950 RPM	108 mm	430.01 g	0.948 lb
ebm-papst Inc. 4606ZWU-879	38 mm	Metal	105.9 CFM	2.97 mł/min	Metal	-40 °C	-40 °C	80 C	80 °C	2 Wire Leads	Ball	40 °C 37500 Hrs	17 W	119 mm	119 mm	115 VAC	42 dB	Tubeaxial	CCC CE CSA UL VDE	3100 RPM				IP65 - Dust Tight Water Resistant
