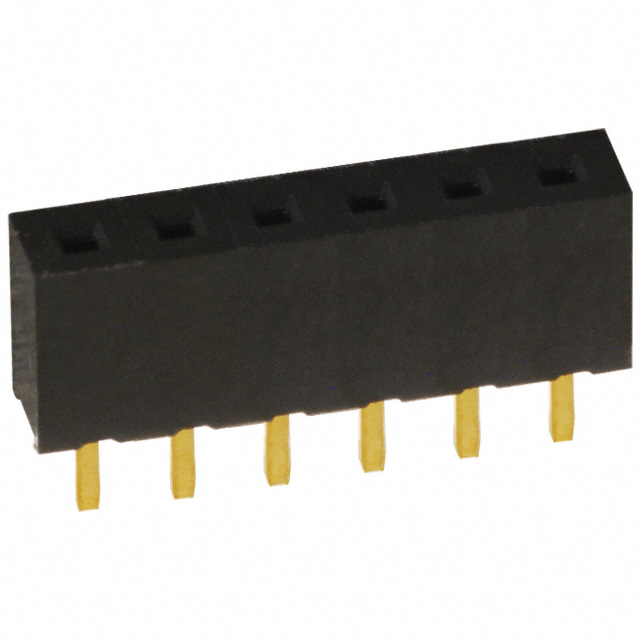

PPPN061BFCN

Obsolete

Sullins Connector Solutions

CONN HDR 6POS 0.079 GOLD PCB

Search across all available documentation for this part.

Obsolete

Sullins Connector Solutions

CONN HDR 6POS 0.079 GOLD PCB

Technical Specifications

Parameters and characteristics for this part

Specification	PPPN061BFCN

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Post	0.094 in
Contact Length - Post	2.4 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	2 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.173 in
Insulation Height	4.4 mm
Insulation Material	Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Termination	Solder

Part	Mounting Type	Contact Type	Connector Type	Termination	Insulation Height	Insulation Height	Insulation Color	Current Rating (Amps)	Number of Positions Loaded	Contact Shape	Contact Finish - Mating	Pitch - Mating [x]	Pitch - Mating [x]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Insulation Material	Contact Length - Post	Contact Length - Post	Number of Rows	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Number of Positions	Contact Material	Fastening Type	Material Flammability Rating
Sullins Connector Solutions PPPN061BFCN	Through Hole	Female Socket	Header	Solder	0.173 in	4.4 mm	Black	2 A	All	Square	Gold	0.079 in	2 mm	-40 °C	105 ░C	Gold	Polyester	0.094 in	2.4 mm	1	Flash	Flash	6	Phosphor Bronze	Push-Pull	UL94 V-0
Sullins Connector Solutions PPPN061FGGN	Through Hole Right Angle	Female Socket	Header	Solder			Black	2 A	All	Square	Gold	0.079 in	2 mm	-40 °C	105 ░C	Gold	Polyester	0.122 "	3.1 mm	1	Flash	Flash	6	Phosphor Bronze	Push-Pull	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

6 Position Header Connector 0.079" (2.00mm) Through Hole Gold
