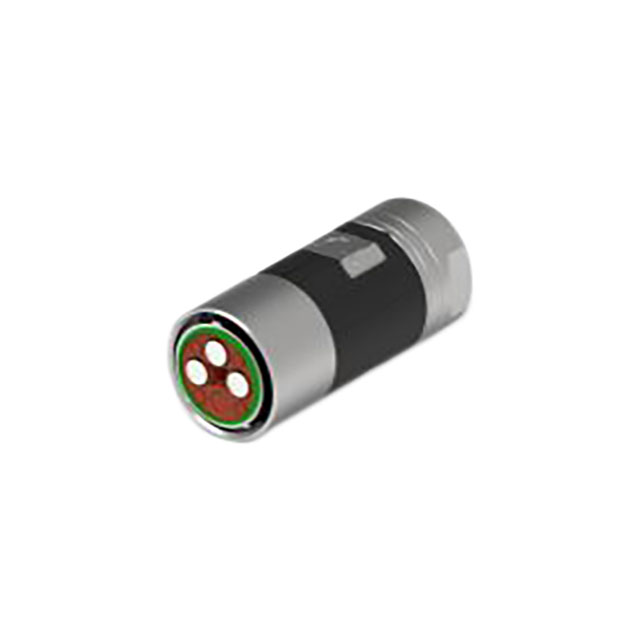

DSA001N00740001000

Active

TE Intercontec

CONN PLG HSG FMALE 8POS INLINE

Search across all available documentation for this part.

Active

TE Intercontec

CONN PLG HSG FMALE 8POS INLINE

Technical Specifications

Parameters and characteristics for this part

Specification	DSA001N00740001000

Connector Type	Plug Housing
Contact Shape	Circular
Fastening Type	Push-Twist
Features	Cable Clamp, Coupling Nut, Backshell
Housing Color	Silver
Includes	1 Backshell, 1 Connector, 1 Cable Clamp
Ingress Protection	IP66/IP67
Insert Material	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	PE
Number of Positions [custom]	3
Number of Positions [custom]	8
Number of Positions [custom]	4
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shielding	Shielded
Type	For Female Sockets

Part	Shell Material	Contact Shape	Note	Fastening Type	Includes	Orientation	Ingress Protection	Shell Finish	Connector Type	Insert Material	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions	Type	Shielding	Features	Housing Color	Mounting Type
TE Intercontec DSA001N00740001000	Zinc Die Cast	Circular	Contacts Not Included	Push-Twist	1 Backshell 1 Cable Clamp 1 Connector	Keyed	IP66/IP67	Nickel	Plug Housing	Nylon Polyamide (PA)	UL94 V-0	-20 C	130 °C	3	8	4	PE	For Female Sockets	Shielded	Backshell Cable Clamp Coupling Nut	Silver	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 (4 + 3 Power + PE) Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Cable Clamp, Coupling Nut
