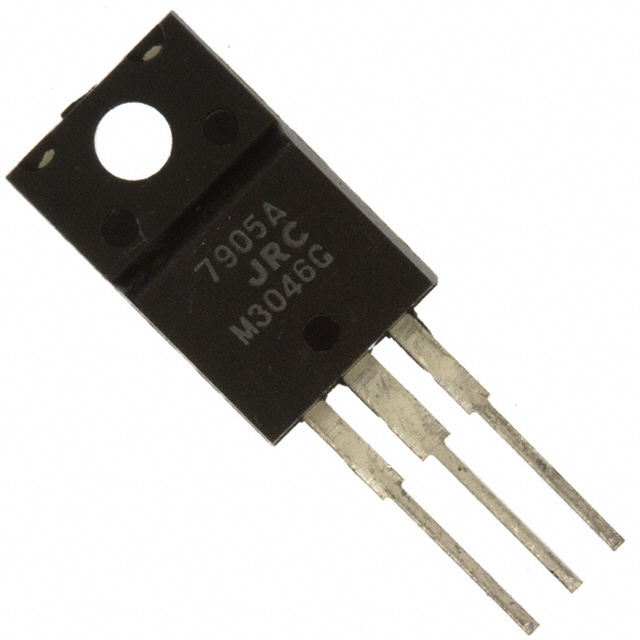

NJM7905FA
ObsoleteNisshinbo Micro Devices Inc
IC REG LINEAR -5V 1.5A TO220F
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NJM7905FA
ObsoleteNisshinbo Micro Devices Inc
IC REG LINEAR -5V 1.5A TO220F
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NJM7905FA |
|---|---|
| Current - Output | 1.5 A |
| Current - Quiescent (Iq) | 5 mA |
| Mounting Type | Through Hole |
| Number of Regulators | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Negative |
| Output Type | 1.81 mOhm |
| Package / Case | TO-220-3 Full Pack |
| PSRR | 60 dB |
| Supplier Device Package | TO-220F |
| Voltage - Input (Max) [Max] | -35 V |
| Voltage - Output (Min/Fixed) [Min] | -5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
NJM7905 Series
Linear Voltage Regulator IC Negative Fixed 1 Output 1.5A TO-220F
