C2RXG-1418M

Active

CW Industries

DIP CABLE - CDP14G/AE14M/X

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsRibbon Cable Assembly Length Guide

C2RXG-1418M

Active

CW Industries

DIP CABLE - CDP14G/AE14M/X

Deep-Dive with AI

DocumentsRibbon Cable Assembly Length Guide

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C2RXG-1418M

Cable Termination	IDC
Color	Ribbon, Multiple
Connector Type	DIP to Cable
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Strain Relief
Length [x]	457.2 mm
Length [x]	1.5 ft
Number of Positions	14
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded
Usage	Socket (0.3"), Board In

C2RXG-1 Series

Part	Features	Length	Length	Length	Pitch - Connector	Pitch - Connector	Shielding	Number of Positions	Cable Termination	Connector Type	Number of Rows	Pitch - Cable	Pitch - Cable	Color	Contact Finish Thickness	Contact Finish Thickness	Usage	Contact Finish	Length [x]	Length [x]	Number of Positions
CW Industries C2RXG-1606M	Strain Relief	152.4 mm	6 "	0.5 '	0.1 in	2.54 mm	Unshielded	16	IDC	DIP to Cable	2	0.05 "	1.27 mm	Multiple Ribbon	10 Áin	0.25 Ám	Board In Socket (0.3")	Gold
CW Industries C2RXG-1418M	Strain Relief				0.1 in	2.54 mm	Unshielded		IDC	DIP to Cable	2	0.05 "	1.27 mm	Multiple Ribbon	10 Áin	0.25 Ám	Board In Socket (0.3")	Gold	457.2 mm	1.5 ft	14
CW Industries C2RXG-1406G	Strain Relief	152.4 mm	6 "	0.5 '	0.1 in	2.54 mm	Unshielded		IDC	DIP to Cable	2	0.05 "	1.27 mm		10 Áin	0.25 Ám	Board In Socket (0.3")	Gold			14
CW Industries C2RXG-1618G	Strain Relief				0.1 in	2.54 mm	Unshielded	16	IDC	DIP to Cable	2	0.05 "	1.27 mm		10 Áin	0.25 Ám	Board In Socket (0.3")	Gold	457.2 mm	1.5 ft
CW Industries C2RXG-1606G	Strain Relief	152.4 mm	6 "	0.5 '	0.1 in	2.54 mm	Unshielded	16	IDC	DIP to Cable	2	0.05 "	1.27 mm		10 Áin	0.25 Ám	Board In Socket (0.3")	Gold
CW Industries C2RXG-1636M	Strain Relief				0.1 in	2.54 mm	Unshielded	16	IDC	DIP to Cable	2	0.05 "	1.27 mm	Multiple Ribbon	10 Áin	0.25 Ám	Board In Socket (0.3")	Gold	914.4 mm	3 ft
CW Industries C2RXG-1436G	Strain Relief				0.1 in	2.54 mm	Unshielded		IDC	DIP to Cable	2	0.05 "	1.27 mm		10 Áin	0.25 Ám	Board In Socket (0.3")	Gold	914.4 mm	3 ft	14
CW Industries C2RXG-1636G	Strain Relief				0.1 in	2.54 mm	Unshielded	16	IDC	DIP to Cable	2	0.05 "	1.27 mm		10 Áin	0.25 Ám	Board In Socket (0.3")	Gold	914.4 mm	3 ft
CW Industries C2RXG-1406M	Strain Relief	152.4 mm	6 "	0.5 '	0.1 in	2.54 mm	Unshielded		IDC	DIP to Cable	2	0.05 "	1.27 mm	Multiple Ribbon	10 Áin	0.25 Ám	Board In Socket (0.3")	Gold			14

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.62
		10	$ 5.84
		25	$ 5.27
		50	$ 4.89
		100	$ 4.54
		250	$ 4.12
		500	$ 3.85
		1000	$ 3.59
		2500	$ 3.30

Description

General part information

C2RXG-1 Series

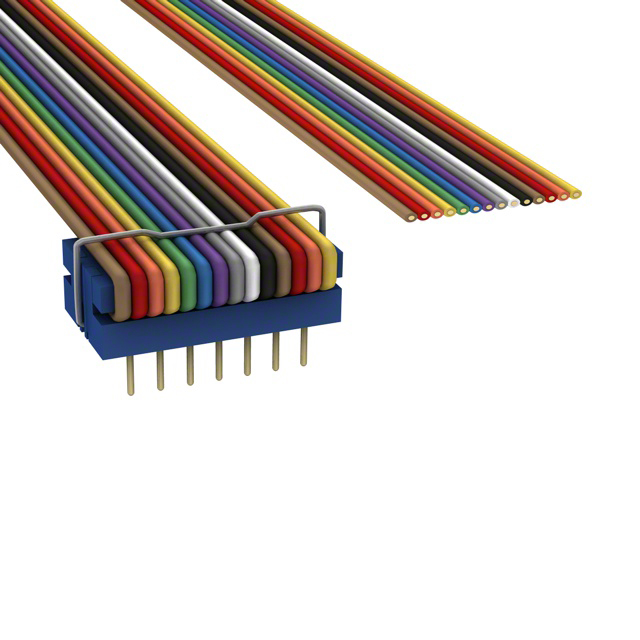

14 Position Cable Assembly Rectangular DIP to Cable 1.50' (457.20mm)

Documents

Technical documentation and resources

Ribbon Cable Assembly Length Guide

Datasheet
