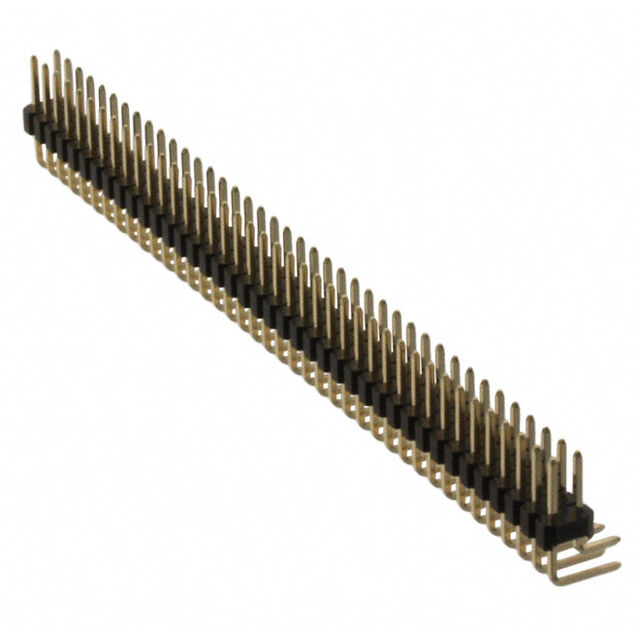

PRPC040DBAN-M71RC

Active

Sullins Connector Solutions

CONN HEADER R/A 80POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PRPC040DBAN-M71RC

Connector Type	Breakaway, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Length - Post [x]	0.12 in
Contact Length - Post [x]	3.05 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.197 in
Insulation Height	5 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	80
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

PRPC040 Series

Part	Mounting Type	Overall Contact Length	Overall Contact Length	Insulation Height [z]	Insulation Height [z]	Current Rating (Amps)	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Fastening Type	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Mating [x]	Contact Length - Mating	Insulation Material	Connector Type	Contact Length - Post	Contact Length - Post	Number of Rows	Termination	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Shape	Contact Finish Thickness - Post	Number of Positions	Material Flammability Rating	Contact Finish - Post	Shrouding	Contact Finish - Mating	Contact Type	Style	Contact Material	Contact Length - Post [x]	Contact Length - Post [x]	Contact Length - Mating [x]	Insulation Height	Insulation Height	Overall Contact Length
Sullins Connector Solutions PRPC040DABN-RC	Through Hole	0.558 in	14.18 mm	0.098 in	2.5 mm	3 A	All	0.1 in	2.54 mm	Flash	Push-Pull	Black	-40 °C	105 ░C	0.23 in	5.84 mm	Polybutylene Terephthalate (PBT)	Breakaway Header	0.23 in	5.84 mm	2	Solder	2.54 mm	0.1 in	Square	Flash	80	UL94 V-0	Gold	Unshrouded	Gold	Male Pin	Board to Board Cable	Brass
Sullins Connector Solutions PRPC040SADN-RC	Through Hole	0.748 in	19.01 mm	0.098 in	2.5 mm	3 A	All	0.1 in	2.54 mm	Flash	Push-Pull	Black	-40 °C	105 ░C	0.23 in	5.84 mm	Polybutylene Terephthalate (PBT)	Breakaway Header			1	Solder			Square	Flash	40	UL94 V-0	Gold	Unshrouded	Gold	Male Pin	Board to Board Cable	Brass	10.67 mm	0.42 in
Sullins Connector Solutions PRPC040DAAN-RC	Through Hole	0.448 in	11.39 mm	0.098 in	2.5 mm	3 A	All	0.1 in	2.54 mm	Flash	Push-Pull	Black	-40 °C	105 ░C	0.23 in	5.84 mm	Polybutylene Terephthalate (PBT)	Breakaway Header			2	Solder	2.54 mm	0.1 in	Square	Flash	80	UL94 V-0	Gold	Unshrouded	Gold	Male Pin	Board to Board Cable	Brass	3.05 mm	0.12 in
Sullins Connector Solutions PRPC040DFBN-RC	Through Hole	0.637 in	16.17 mm	0.098 in	2.5 mm	3 A	All	0.1 in	2.54 mm	Flash	Push-Pull	Black	-40 °C	105 ░C	0.318 "		Polybutylene Terephthalate (PBT)	Breakaway Header	0.22 in	5.58 mm	2	Solder	2.54 mm	0.1 in	Square	Flash	80	UL94 V-0	Gold	Unshrouded	Gold	Male Pin	Board to Board Cable	Brass			8.08 mm
Sullins Connector Solutions PRPC040DBAN-M71RC	Through Hole Right Angle					3 A	All	0.1 in	2.54 mm	Flash	Push-Pull	Black	-40 °C	105 ░C	0.23 in	5.84 mm	Polybutylene Terephthalate (PBT)	Breakaway Header			2	Solder	2.54 mm	0.1 in	Square	Flash	80	UL94 V-0	Gold	Unshrouded	Gold	Male Pin	Board to Board Cable	Brass	3.05 mm	0.12 in		0.197 in	5 mm
Sullins Connector Solutions PRPC040DFAN-RC	Through Hole		0.537 "	0.098 in	2.5 mm	3 A	All	0.1 in	2.54 mm	Flash	Push-Pull	Black	-40 °C	105 ░C	0.318 "		Polybutylene Terephthalate (PBT)	Breakaway Header			2	Solder	2.54 mm	0.1 in	Square	Flash	80	UL94 V-0	Gold	Unshrouded	Gold	Male Pin	Board to Board Cable	Brass	3.05 mm	0.12 in	8.08 mm			13.63 mm
Sullins Connector Solutions PRPC040SACN-RC	Through Hole	0.648 in	16.47 mm	0.098 in	2.5 mm	3 A	All	0.1 in	2.54 mm	Flash	Push-Pull	Black	-40 °C	105 ░C	0.23 in	5.84 mm	Polybutylene Terephthalate (PBT)	Breakaway Header			1	Solder			Square	Flash	40	UL94 V-0	Gold	Unshrouded	Gold	Male Pin	Board to Board Cable	Brass	8.13 mm	0.32 in
Sullins Connector Solutions PRPC040SAAN-RC	Through Hole	0.448 in	11.39 mm	0.098 in	2.5 mm	3 A	All	0.1 in	2.54 mm	Flash	Push-Pull	Black	-40 °C	105 ░C	0.23 in	5.84 mm	Polybutylene Terephthalate (PBT)	Breakaway Header			1	Solder			Square	Flash	40	UL94 V-0	Gold	Unshrouded	Gold	Male Pin	Board to Board Cable	Brass	3.05 mm	0.12 in
Sullins Connector Solutions PRPC040SGAN-M71RC	Through Hole Right Angle			0.098 in	2.5 mm	3 A	All	0.1 in	2.54 mm	Flash	Push-Pull	Black	-40 °C	105 ░C	0.318 "		Polybutylene Terephthalate (PBT)	Breakaway Header			1	Solder			Square	Flash	40	UL94 V-0	Gold	Unshrouded	Gold	Male Pin	Board to Board Cable	Brass	3.05 mm	0.12 in	8.08 mm
Sullins Connector Solutions PRPC040DGAN-M71RC	Through Hole Right Angle					3 A	All	0.1 in	2.54 mm	Flash	Push-Pull	Black	-40 °C	105 ░C	0.318 "		Polybutylene Terephthalate (PBT)	Breakaway Header			2	Solder	2.54 mm	0.1 in	Square	Flash	80	UL94 V-0	Gold	Unshrouded	Gold	Male Pin	Board to Board Cable	Brass	3.05 mm	0.12 in	8.08 mm	0.197 in	5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.45
		10	$ 2.19
		100	$ 1.81
		500	$ 1.43
		1000	$ 1.23

Description

General part information

PRPC040 Series

Connector Header Through Hole, Right Angle 80 position 0.100" (2.54mm)
