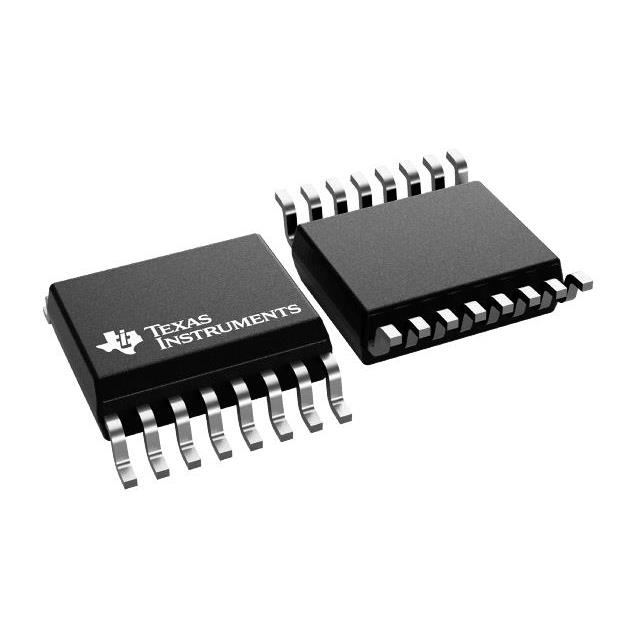

V62/21610-01XE

Active

Texas Instruments

RADIATION TOLERANT QUAD-CHANNEL,

Search across all available documentation for this part.

Active

Texas Instruments

RADIATION TOLERANT QUAD-CHANNEL,

Technical Specifications

Parameters and characteristics for this part

Specification	V62/21610-01XE

Channel Type	Unidirectional
Common Mode Transient Immunity (Min) [Min]	100 V/ns
Data Rate	100 Mbps
Inputs - Side 1/Side 2 [custom]	3
Inputs - Side 1/Side 2 [custom]	1
Isolated Power	True
Mounting Type	Surface Mount
Number of Channels	4
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	0.154 in
Package / Case	16-SSOP
Package / Case	3.9 mm
Propagation Delay tpLH / tpHL (Max) [Max] [custom]	16 ns
Propagation Delay tpLH / tpHL (Max) [Max] [custom]	16 ns
Pulse Width Distortion (Max) [Max]	4.9 ns
Rise / Fall Time (Typ) [custom]	2.4 ns
Rise / Fall Time (Typ) [custom]	2.4 ns
Supplier Device Package	16-SSOP
Technology	Capacitive Coupling
Type	SPI, CAN, RS422, RS485
Voltage - Isolation	3000 VAC
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	2.25 V

Part	Propagation Delay tpLH / tpHL (Max) [Max] [custom]	Propagation Delay tpLH / tpHL (Max) [Max] [custom]	Voltage - Supply [Max]	Voltage - Supply [Min]	Number of Channels	Isolated Power	Inputs - Side 1/Side 2 [custom]	Inputs - Side 1/Side 2 [custom]	Common Mode Transient Immunity (Min) [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Isolation	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Technology	Data Rate	Supplier Device Package	Mounting Type	Type	Pulse Width Distortion (Max) [Max]	Channel Type	Package / Case	Package / Case	Package / Case
Texas Instruments V62/21610-01XE	16 ns	16 ns	5.5 V	2.25 V	4		3	1	100 V/ns	-55 °C	125 °C	3000 VAC	2.4 ns	2.4 ns	Capacitive Coupling	100 Mbps	16-SSOP	Surface Mount	CAN RS422 RS485 SPI	4.9 ns	Unidirectional	0.154 in	16-SSOP	3.9 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	250	$ 468.56

General part information

CAN, RS422, RS485, SPI Digital Isolator 3000Vrms 4 Channel 100Mbps 100kV/µs CMTI 16-SSOP (0.154", 3.90mm Width)
