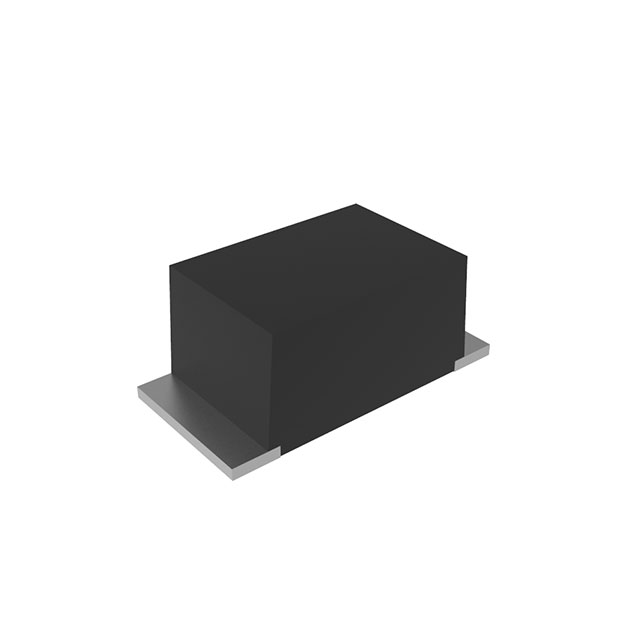

SS14FH-TP

Micro Commercial Components

INTERFACE

Search across all available documentation for this part.

Micro Commercial Components

INTERFACE

Technical Specifications

Parameters and characteristics for this part

Specification	SS14FH-TP

Current - Average Rectified (Io)	1 A
Current - Reverse Leakage @ Vr	500 µA
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	SOD-323F, SC-90
Speed	200 mA, 500 ns
Supplier Device Package	SOD-323FH
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	40 V
Voltage - Forward (Vf) (Max) @ If	550 mV

Part	Technology	Voltage - DC Reverse (Vr) (Max) [Max]	Speed	Current - Reverse Leakage @ Vr	Current - Average Rectified (Io)	Supplier Device Package	Mounting Type	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Package / Case	Voltage - Forward (Vf) (Max) @ If	Capacitance @ Vr, F	Grade	Qualification
Micro Commercial Components SS14FH-TP	Schottky	40 V	200 mA 500 ns	500 µA	1 A	SOD-323FH	Surface Mount	150 °C	-55 °C	SC-90 SOD-323F	550 mV
Micro Commercial Components SS14E-TP-HF	Schottky	40 V	200 mA 500 ns	500 µA	1 A	SMAE	Surface Mount	125 °C	-55 °C	DO-214AC SMA	600 mV	110 pF
Micro Commercial Components SS14HE3-LTP	Schottky	40 V	200 mA 500 ns	100 çA	1 A	DO-214AC (SMA)	Surface Mount	125 °C	-55 °C	DO-214AC SMA	500 mV	52 pF	Automotive	AEC-Q101
Micro Commercial Components SS14E-TPS01	Schottky	40 V	200 mA 500 ns	100 çA	1 A	DO-214AC (SMAE)	Surface Mount	125 °C	-55 °C	DO-214AC SMA	600 mV	110 pF

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	3000	$ 0.09

General part information

Diode 40 V 1A Surface Mount SOD-323FH
