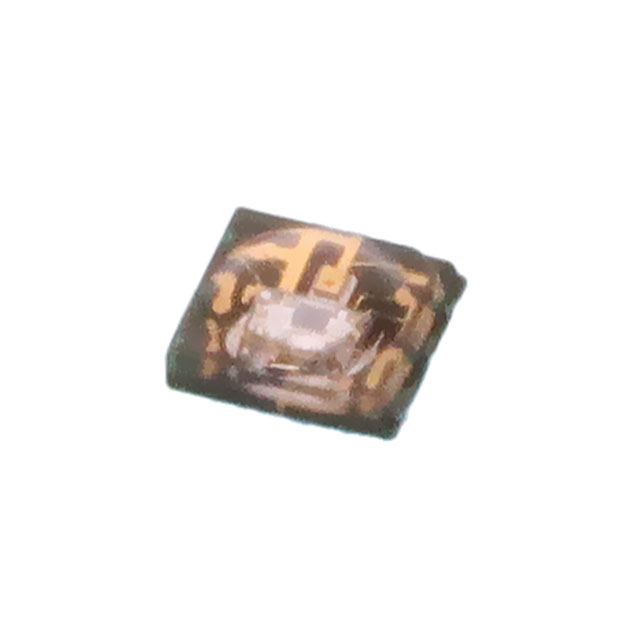

AEDR-8300-1P0

Active

Broadcom Limited

SENSOR OPT REFLECTIVE 2MM 6SMD

Search across all available documentation for this part.

Active

Broadcom Limited

SENSOR OPT REFLECTIVE 2MM 6SMD

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Package / Case	Features	Current - Supply	Voltage - Supply [Min]	Voltage - Supply [Max]	Sensing Method	Sensing Distance	Sensing Distance	Sensing Object
Broadcom Limited AEDR-8300-1P2	Surface Mount	6-SMD No Lead	Compact Model	2.2 mA	4.5 V	5.5 V	Reflective	0.079 in	2 mm	Codewheel/Codestrip
Broadcom Limited AEDR-8300-1Q0	Surface Mount	6-SMD No Lead	Compact Model	2.2 mA	4.5 V	5.5 V	Reflective	0.079 in	2 mm	Codewheel/Codestrip
Broadcom Limited AEDR-8300-1P0	Surface Mount	6-SMD Module	Compact Model	2.2 mA	4.5 V	5.5 V	Reflective	0.079 in	2 mm	Codewheel/Codestrip
Broadcom Limited AEDR-8300-1Q1	Surface Mount	6-SMD No Lead	Compact Model	2.2 mA	4.5 V	5.5 V	Reflective	0.079 in	2 mm	Codewheel/Codestrip
Broadcom Limited AEDR-8300-1W1	Surface Mount	6-SMD No Lead	Compact Model	2.2 mA	4.5 V	5.5 V	Reflective	0.079 in	2 mm	Codewheel/Codestrip
Broadcom Limited AEDR-8300-1K0	Surface Mount	6-SMD No Lead	Compact Model	2.2 mA	4.5 V	5.5 V	Reflective	0.079 in	2 mm	Codewheel/Codestrip
Broadcom Limited AEDR-8300-1K2	Surface Mount	6-SMD No Lead	Compact Model	2.2 mA	4.5 V	5.5 V	Reflective	0.079 in	2 mm	Codewheel/Codestrip
Broadcom Limited AEDR-8300-1K1	Surface Mount	6-SMD No Lead	Compact Model	2.2 mA	4.5 V	5.5 V	Reflective	0.079 in	2 mm	Codewheel/Codestrip

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Reflective Optical Sensor 0.079" (2mm) Codewheel/Codestrip 6-SMD Module

Technical documentation and resources

No documents available
