M4708 SL002

Active

ALPHA WIRE

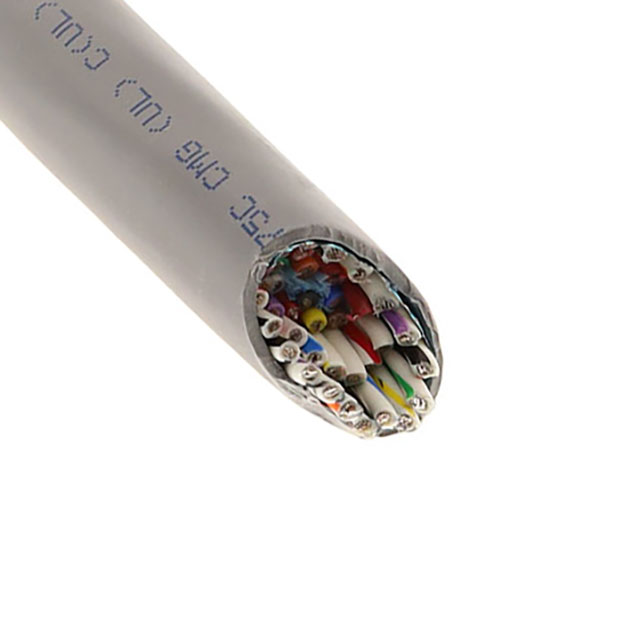

CABLE 40COND 18AWG SHLD

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 40COND 18AWG SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	M4708 SL002

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	16
Conductor Strand [custom]	30 AWG
Features	Rip Cord, Drain Wire
Jacket (Insulation) Diameter [diameter]	0.69 in
Jacket (Insulation) Diameter [diameter]	17.53 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	1.346 mm
Jacket (Insulation) Thickness	0.053 in
Jacket Color	Slate
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	40
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2464
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Voltage	300 V
Wire Gauge	18 AWG

Part	Shield Type	Jacket (Insulation) Material	Conductor Insulation	Shield Coverage	Features	Wire Gauge	Jacket Color	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Voltage	Shield Material	Number of Conductors	Ratings	Cable Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Material	Length	Length	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Strand [custom]	Conductor Strand [custom]	Length [x]	Length [x]
ALPHA WIRE M4708 SL001	Foil	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	100 %	Drain Wire Rip Cord	18 AWG	Slate	1.346 mm	0.053 in	300 V	Aluminum	40	UL Style 2464	Multi-Conductor	0.69 in	17.53 mm	Copper Tinned	1000 ft	304.8 m	-20 C	80 C	16	30 AWG
ALPHA WIRE M4708 SL002	Foil	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	100 %	Drain Wire Rip Cord	18 AWG	Slate	1.346 mm	0.053 in	300 V	Aluminum	40	UL Style 2464	Multi-Conductor	0.69 in	17.53 mm	Copper Tinned			-20 C	80 C	16	30 AWG	500 '	152.4 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 13.80

General part information

40 Conductor Multi-Conductor Cable Slate 18 AWG Foil 500.0' (152.4m)
