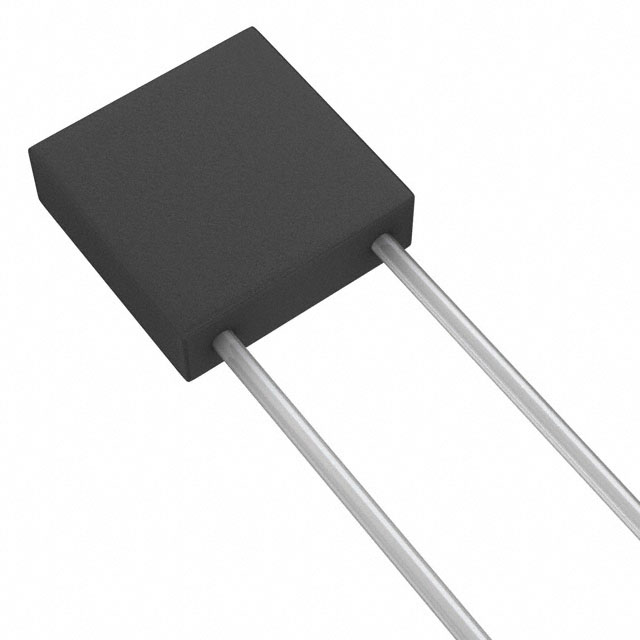

C062C104K1R5TA

Active

KEMET

.100UF 100V ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

KEMET

.100UF 100V ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Applications	Temperature Coefficient	Lead Style	Voltage - Rated	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case	Tolerance	Lead Spacing	Lead Spacing	Capacitance	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Features
KEMET C062C104K1R5TA	-55 °C	125 °C	Through Hole	General Purpose	X7R	Straight	100 V	0.3 in	7.62 mm	Radial	10 %	5.08 mm	0.2 in	100000 pF	0.09 "	2.29 mm	0.29 in	7.37 mm
KEMET C062C103J1G5TA	-55 °C	125 °C	Through Hole	General Purpose	C0G NP0	Straight	100 V	0.3 in	7.62 mm	Radial	5 %	5.08 mm	0.2 in	10000 pF	0.09 "	2.29 mm	0.29 in	7.37 mm	Low ESL
KEMET C062C104K1R5TA7301	-55 °C	125 °C	Through Hole	General Purpose	X7R	Straight	100 V			Radial	10 %	5.08 mm	0.2 in	100000 pF	0.09 "	2.29 mm	0.29 in	7.37 mm
KEMET C062C103F1G5CA	-55 °C	125 °C	Through Hole	General Purpose	C0G NP0	Straight	100 V			Radial	1 %	5.08 mm	0.2 in	10000 pF	0.09 "	2.29 mm	0.29 in	7.37 mm	Low ESL
KEMET C062C105J5R5CA	-55 °C	125 °C	Through Hole	General Purpose	X7R	Straight	50 VDC	0.3 in	7.62 mm	Radial	5 %	5.08 mm	0.2 in	1 µF	0.09 "	2.29 mm	0.29 in	7.37 mm
