JANTXV1N5313-1

Active

MACOM Technology Solutions

DIODE CUR REG 100V 4.73MA 500MW

Search across all available documentation for this part.

Active

MACOM Technology Solutions

DIODE CUR REG 100V 4.73MA 500MW

Technical Specifications

Parameters and characteristics for this part

Specification	JANTXV1N5313-1

Grade	Military
Mounting Type	Through Hole
Operating Temperature [Max]	175 ░C
Operating Temperature [Min]	-65 °C

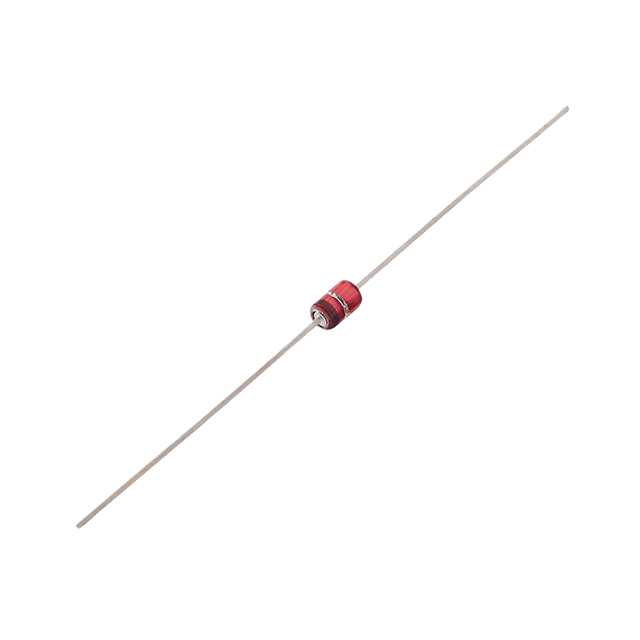

Package / Case	Axial, DO-204AA, DO-7
Power - Max [Max]	500 mW
Qualification	MIL-PRF-19500/463
Regulator Current (Max) [Max]	4.73 mA
Supplier Device Package	DO-7
Voltage - Anode - Cathode (Vak)(Max) [Max]	100 V
Voltage - Limiting (Max) [Max]	2.75 V

Part	Qualification	Grade	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Limiting (Max) [Max]	Mounting Type	Regulator Current (Max) [Max]	Package / Case	Power - Max [Max]	Voltage - Anode - Cathode (Vak)(Max) [Max]
MACOM Technology Solutions JANTXV1N5313-1	MIL-PRF-19500/463	Military	DO-7	175 ░C	-65 °C	2.75 V	Through Hole	4.73 mA	Axial DO-204AA DO-7	500 mW	100 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

DIODE CUR REG 100V 4.73MA 500MW

Technical documentation and resources
