0348978241

Active

Molex

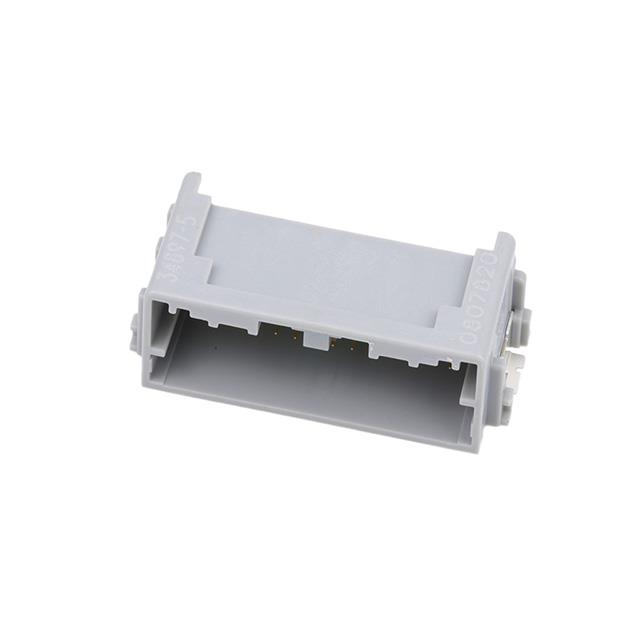

CONN HEADER SMD R/A 24POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

0348978241

Active

Molex

CONN HEADER SMD R/A 24POS 2MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0348978241

Applications	Automotive
Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	5.55 mm
Contact Length - Mating	0.218 in
Contact Material	Brass
Contact Shape	Rectangular
Contact Type	Male Blade
Fastening Type	Latch Holder
Features	Solder Retention
Insulation Color	Gray
Insulation Height	0.46 in
Insulation Height	11.68 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	24
Number of Positions Loaded	All
Number of Rows	2
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

034897 Series

Mini50 Unsealed Header, Right-Angle, SMT, Dual Row, 16 Circuits, Gold (Au) Plating, Polarization Option A, Black, Tape and Reel

Part	Applications	Number of Positions Loaded	Number of Rows	Features	Mounting Type	Contact Finish - Mating	Contact Finish - Post	Contact Material	Number of Positions	Contact Length - Mating	Contact Length - Mating	Style	Material Flammability Rating	Fastening Type	Insulation Height	Insulation Height	Contact Type	Contact Shape	Shrouding	Pitch - Mating [x]	Pitch - Mating [x]	Termination	Insulation Color	Connector Type	Number of Positions
Molex 348976200
Molex 0348976201	Automotive	All	2	Solder Retention	Surface Mount Right Angle	Gold	Tin	Brass	20	5.55 mm	0.218 in	Board to Cable/Wire	UL94 V-0	Latch Holder	0.46 in	11.68 mm	Male Blade	Rectangular	Shrouded - 4 Wall	0.079 in	2 mm	Solder	Gray	Header
Molex 0348978160	Automotive	All	2	Solder Retention	Surface Mount Right Angle		Tin	Brass		5.55 mm	0.218 in	Board to Cable/Wire	UL94 V-0	Latch Holder	0.46 in	11.68 mm	Male Blade	Rectangular	Shrouded - 4 Wall	0.079 in	2 mm	Solder	Black	Header	16
Molex 0348975121	Automotive	All	2	Solder Retention	Surface Mount Right Angle	Gold	Tin	Brass	12	5.55 mm	0.218 in	Board to Cable/Wire	UL94 V-0	Latch Holder	0.46 in	11.68 mm	Male Blade	Rectangular	Shrouded - 4 Wall	0.079 in	2 mm	Solder	Gray	Header
Molex 0348978241	Automotive	All	2	Solder Retention	Surface Mount Right Angle		Tin	Brass	24	5.55 mm	0.218 in	Board to Cable/Wire	UL94 V-0	Latch Holder	0.46 in	11.68 mm	Male Blade	Rectangular	Shrouded - 4 Wall	0.079 in	2 mm	Solder	Gray	Header
Molex 0348976241	Automotive	All	2	Solder Retention	Surface Mount Right Angle	Gold	Tin	Brass	24	5.55 mm	0.218 in	Board to Cable/Wire	UL94 V-0	Latch Holder	0.46 in	11.68 mm	Male Blade	Rectangular	Shrouded - 4 Wall	0.079 in	2 mm	Solder	Gray	Header
Molex 0348979121
Molex 0348979241	Automotive	All	2	Solder Retention	Surface Mount Right Angle		Tin	Brass	24	5.55 mm	0.218 in	Board to Cable/Wire	UL94 V-0	Latch Holder	0.46 in	11.68 mm	Male Blade	Rectangular	Shrouded - 4 Wall	0.079 in	2 mm	Solder	Gray	Header
Molex 0348979202
Molex 0348976120	Automotive	All	2	Solder Retention	Surface Mount Right Angle	Gold		Brass	12	5.55 mm	0.218 in	Board to Cable/Wire	UL94 V-0	Latch Holder	0.46 in	11.68 mm	Male Blade	Rectangular	Shrouded - 4 Wall	0.079 in	2 mm	Solder	Black	Header

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 5.47
		10	$ 4.82
		100	$ 3.83
	Digi-Reel®	1	$ 5.47
		10	$ 4.82
		100	$ 3.83
	Tape & Reel (TR)	250	$ 3.83
		1250	$ 3.17
		1750	$ 3.06
		2500	$ 2.95

Description

General part information

034897 Series

Mini50 Unsealed Header, Right-Angle, SMT, Dual Row, 16 Circuits, Gold (Au) Plating, Polarization Option A, Black, Tape and Reel
