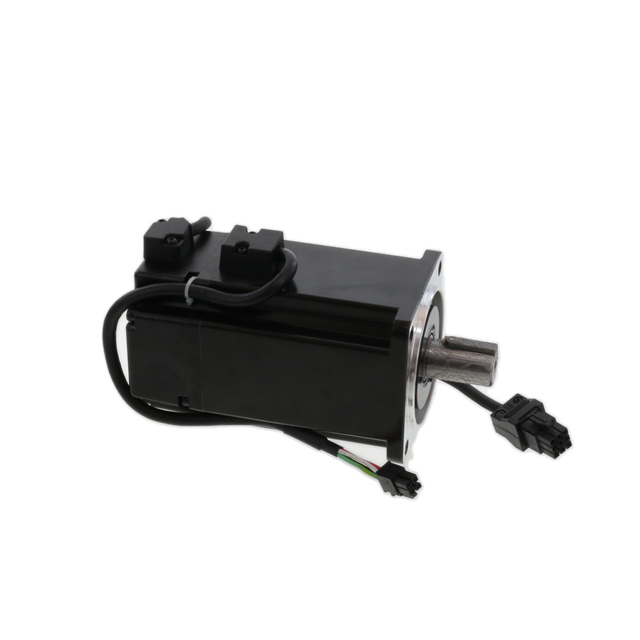

ECMA-C10807RS

Obsolete

Delta Electronics/Industrial Automation

SERVOMOTOR 3000 RPM 220V

Deep-Dive with AI

Search across all available documentation for this part.

ECMA-C10807RS

Obsolete

Delta Electronics/Industrial Automation

SERVOMOTOR 3000 RPM 220V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ECMA-C10807RS

Approval Agency	CE, cURus
Diameter - Shaft	0.748 in
Diameter - Shaft	19 mm
Encoder Type	Incremental
Features	Key, Oil Seal
Function	Servomotor
Length - Shaft and Bearing	35 mm
Length - Shaft and Bearing	1.378 in
Mounting Hole Spacing	90 mm
Mounting Hole Spacing	3.543 in
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
RPM	3000 RPM
Size / Dimension [x]	80 mm
Size / Dimension [x]	3.15 in
Size / Dimension [y]	3.15 in
Size / Dimension [y]	80 mm
Termination Style	Cable with Connector
Torque - Max Momentary (oz-in / mNm)	7160 mNm
Torque - Max Momentary (oz-in / mNm)	1014 oz-in
Torque - Rated (oz-in / mNm)	338.5 oz-in
Torque - Rated (oz-in / mNm)	2390 mNm
Type	AC Motor
Voltage - Rated	220 VAC

ECMA-C Series

Part	Features	Operating Temperature [Max]	Torque - Rated (oz-in / mNm)	Torque - Rated (oz-in / mNm)	Power - Rated	Length - Shaft and Bearing	Length - Shaft and Bearing	Termination Style	Mounting Hole Spacing	Mounting Hole Spacing	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]	Type	Voltage - Rated	Torque - Max Momentary (oz-in / mNm)	Torque - Max Momentary (oz-in / mNm)	Encoder Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Function	RPM	Approval Agency	Length - Shaft and Bearing [x]	Length - Shaft and Bearing [x]	Torque - Max Momentary (oz-in / mNm)	Diameter - Shaft	Diameter - Shaft	Torque - Rated (oz-in / mNm)
Delta Electronics/Industrial Automation ECMA-C20401SS	Brake Key Oil Seal	40 °C	320 mNm	45.32 oz-in	100 W	0.984 in	25 mm	Cable with Connector	46 mm	1.811 in	0.315 in	8 mm	AC Motor	220 VAC	960 mNm	135.9 oz-in	Incremental	1.575 in	40 mm	1.575 in	40 mm	Servomotor	3000 RPM	CE cURus
Delta Electronics/Industrial Automation ECMA-C11020RS	Key Oil Seal	40 °C	6370 mNm	902.1 oz-in	2 kW			Cable with Connector			0.866 in	22 mm	AC Motor	220 VAC		19110 mNm	Incremental	3.937 in	100 mm	3.937 in	100 mm	Servomotor	3000 RPM	CE cURus	45 mm	1.772 in	2706 oz-in
Delta Electronics/Industrial Automation ECMA-C10807RS	Key Oil Seal	40 °C	2390 mNm	338.5 oz-in		1.378 in	35 mm	Cable with Connector	90 mm	3.543 in			AC Motor	220 VAC		7160 mNm	Incremental	3.15 in	80 mm	3.15 in	80 mm	Servomotor	3000 RPM	CE cURus			1014 oz-in	0.748 in	19 mm
Delta Electronics/Industrial Automation ECMA-C11010RS	Key Oil Seal	40 °C	450.3 oz-in		1000 W			Cable with Connector			0.866 in	22 mm	AC Motor	220 VAC		9540 mNm	Incremental	3.937 in	100 mm	3.937 in	100 mm	Servomotor	3000 RPM	CE cURus	45 mm	1.772 in	1351 oz-in			3180 mNm
Delta Electronics/Industrial Automation ECMA-C21020SS	Brake Key Oil Seal	40 °C	6370 mNm	902.1 oz-in	2 kW			Cable with Connector			0.866 in	22 mm	AC Motor	220 VAC		19110 mNm	Incremental	3.937 in	100 mm	3.937 in	100 mm	Servomotor	3000 RPM	CE cURus	45 mm	1.772 in	2706 oz-in
Delta Electronics/Industrial Automation ECMA-C10401RS	Key Oil Seal	40 °C	320 mNm	45.32 oz-in	100 W	0.984 in	25 mm	Cable with Connector	46 mm	1.811 in	0.315 in	8 mm	AC Motor	220 VAC	960 mNm	135.9 oz-in	Incremental	1.575 in	40 mm	1.575 in	40 mm	Servomotor	3000 RPM	CE cURus
Delta Electronics/Industrial Automation ECMA-C20602SS	Brake Key Oil Seal	40 °C	640 mNm	90.65 oz-in	200 W			Cable with Connector	70 mm	2.756 in	0.551 in	14 mm	AC Motor	220 VAC	1920 mNm	271.9 oz-in	Incremental	2.362 in	60 mm	2.362 in	60 mm	Servomotor	3000 RPM	CE cURus	30 mm	1.181 in
Delta Electronics/Industrial Automation ECMA-CA0807SS	Brake Key Oil Seal	40 °C	2390 mNm	338.5 oz-in		1.378 in	35 mm	Cable with Connector	90 mm	3.543 in			AC Motor	220 VAC		7160 mNm	Absolute	3.15 in	80 mm	3.15 in	80 mm	Servomotor	3000 RPM	CE cURus			1014 oz-in	0.748 in	19 mm
Delta Electronics/Industrial Automation ECMA-CA0604RS	Key Oil Seal	40 °C	1270 mNm	179.9 oz-in	400 W			Cable with Connector	70 mm	2.756 in	0.551 in	14 mm	AC Motor	220 VAC			Absolute	2.362 in	60 mm	2.362 in	60 mm	Servomotor	3000 RPM	CE cURus	30 mm	1.181 in
Delta Electronics/Industrial Automation ECMA-CA1020RS	Key Oil Seal	40 °C	6370 mNm	902.1 oz-in	2 kW			Cable with Connector			0.866 in	22 mm	AC Motor	220 VAC		19110 mNm	Absolute	3.937 in	100 mm	3.937 in	100 mm	Servomotor	3000 RPM	CE cURus	45 mm	1.772 in	2706 oz-in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 560.31
		5	$ 534.38

Description

General part information

ECMA-C Series

AC Motor Servomotor 3000 RPM 750W Incremental 220VAC
