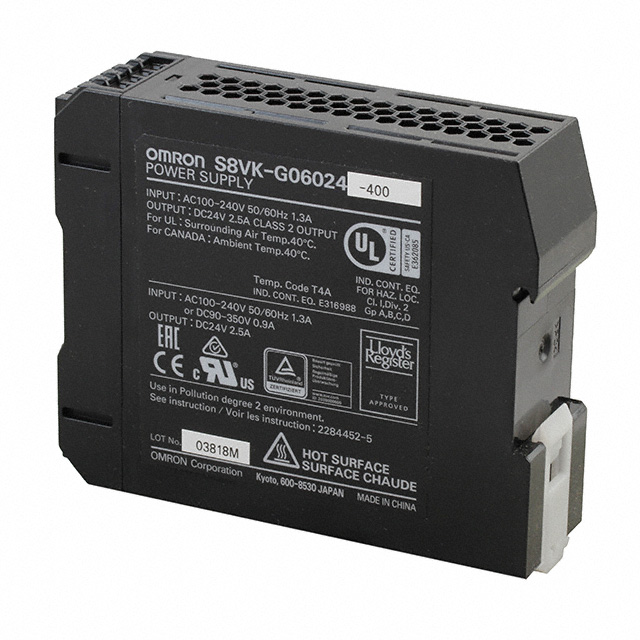

S8VK-G06024-400

Active

Omron Electronics Inc-EMC Div

AC/DC DIN RAIL SUPPLY 24V 60W

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

AC/DC DIN RAIL SUPPLY 24V 60W

Technical Specifications

Parameters and characteristics for this part

Specification	S8VK-G06024-400

AC Voltage - Input [Max]	264 VAC
AC Voltage - Input [Min]	85 VAC
Applications	ITE (Commercial)
Approval Agency	TUV, CE, cULus, cURus
Current - Output (Max) [Max]	2.5 A
Efficiency	88 %
Features	PFC, Adjustable Output, Universal Input
Input Type	AC
Number of Outputs	1
Size / Dimension [x]	4.33 in
Size / Dimension [x]	110 mm
Size / Dimension [y]	32 mm
Size / Dimension [y]	1.26 in
Size / Dimension [z]	3.54 "
Size / Dimension [z]	90 mm
Voltage - Isolation	3000 V
Voltage - Output 1	24 V

Part	Input Type	Efficiency	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Approval Agency	Applications	Voltage - Output 1	Features	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Current - Output (Max) [Max]	Voltage - Isolation	Number of Outputs	Operating Temperature [Min]	Operating Temperature [Max]
Omron Electronics Inc-EMC Div S8VK-G06024-400	AC	88 %	4.33 in	32 mm	110 mm	1.26 in	3.54 "	90 mm	CE cULus cURus TUV	ITE (Commercial)	24 V	Adjustable Output PFC Universal Input	85 VAC	264 VAC	2.5 A	3000 V	1
Omron Electronics Inc-EMC Div S8VK-G06024	AC	88 %	4.33 in	32 mm	110 mm	1.26 in	3.54 "	90 mm	CE cULus cURus VDE	ITE (Commercial)	24 V	Adjustable Output Load Sharing Universal Input	85 VAC	264 VAC	2.5 A	3000 V	1	-40 °C	75 ¯C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

AC/DC DIN RAIL SUPPLY 24V 60W
