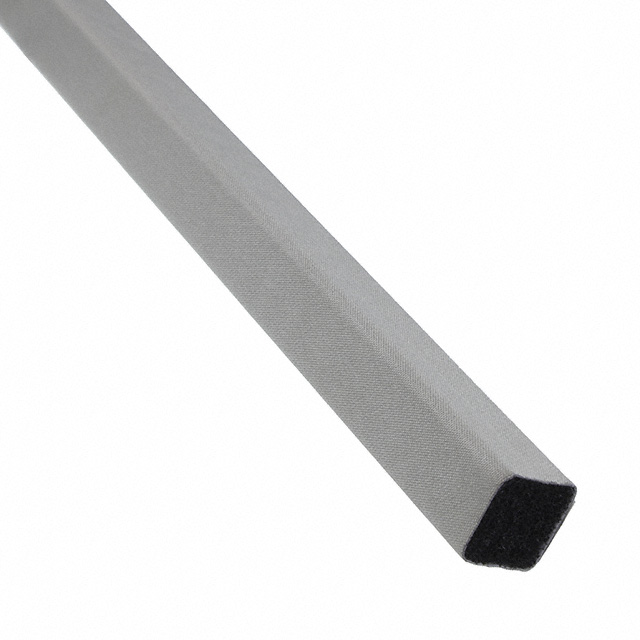

77-12-3176-02400

Active

Parker Chomerics

RFI FOF GASKET NI/CU ADH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsPart Number Letter Document Datasheet

77-12-3176-02400

Active

Parker Chomerics

RFI FOF GASKET NI/CU ADH

Deep-Dive with AI

DocumentsPart Number Letter Document Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	77-12-3176-02400

Attachment Method	Adhesive
Height [z]	0.5 in
Height [z]	12.7 mm
Length [x]	24 in
Length [x]	609.6 mm
Material	Nickel-Copper over Urethane Foam
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Shape	Square
Shelf Life	24 Months
Shelf Life Start	Date of Shipment
Storage/Refrigeration Temperature	70 °F
Storage/Refrigeration Temperature	21 °C
Type	Fabric Over Foam

77-12 Series

Part	Height [z]	Height [z]	Width [y]	Width [y]	Type	Shape	Shelf Life	Attachment Method	Operating Temperature [Min]	Operating Temperature [Max]	Shelf Life Start	Material	Storage/Refrigeration Temperature	Storage/Refrigeration Temperature	Length [x]	Length [x]	Height	Width [x]	Width [x]	Width	Width	Width [x]	Height [z]
Parker Chomerics 77-12-3113-02400	0.197 "	5 mm	0.197 in	5 mm	Fabric Over Foam	Rectangle	24 Months	Adhesive	-40 °C	70 °C	Date of Shipment	Nickel-Copper over Urethane Foam	70 °F	21 °C	24 in	609.6 mm
Parker Chomerics 77-12-3643-02400	0.375 in				Fabric Over Foam	D-Shape	24 Months	Adhesive	-40 °C	70 °C	Date of Shipment	Nickel-Copper over Urethane Foam			24 in	609.6 mm	9.53 mm
Parker Chomerics 77-12-3110-02400	0.098 in	2.49 mm	0.197 in	5 mm	Fabric Over Foam	Rectangle	24 Months	Adhesive	-40 °C	70 °C	Date of Shipment	Nickel-Copper over Urethane Foam	70 °F	21 °C	24 in	609.6 mm
Parker Chomerics 77-12-3214-02400	0.039 in	0.99 mm	0.157 in	3.99 mm	Fabric Over Foam	Rectangle	24 Months	Adhesive	-40 °C	70 °C	Date of Shipment	Nickel-Copper over Urethane Foam	70 °F	21 °C	24 in	609.6 mm
Parker Chomerics 77-12-3313-02400	0.394 in	10.01 mm			Fabric Over Foam	Rectangle	24 Months	Adhesive	-40 °C	70 °C	Date of Shipment	Nickel-Copper over Urethane Foam	70 °F	21 °C	24 in	609.6 mm		8 mm	0.315 in
Parker Chomerics 77-12-3195-02400	0.126 "	3.2 mm			Fabric Over Foam	Rectangle	24 Months	Adhesive	-40 °C	70 °C	Date of Shipment	Nickel-Copper over Urethane Foam	70 °F	21 °C	24 in	609.6 mm				15.9 mm	0.626 in
Parker Chomerics 77-12-3224-02400	0.039 in	0.99 mm			Fabric Over Foam	Rectangle	24 Months	Adhesive	-40 °C	70 °C	Date of Shipment	Nickel-Copper over Urethane Foam	70 °F	21 °C	24 in	609.6 mm		7.01 mm				0.276 in
Parker Chomerics 77-12-3176-02400		0.5 in			Fabric Over Foam	Square	24 Months	Adhesive	-40 °C	70 °C	Date of Shipment	Nickel-Copper over Urethane Foam	70 °F	21 °C	24 in	609.6 mm							12.7 mm
Parker Chomerics 77-12-3811-02400	0.252 in	6.4 mm			Fabric Over Foam	Knife	24 Months	Adhesive	-40 °C	70 °C	Date of Shipment	Nickel-Copper over Urethane Foam	70 °F	21 °C	24 in	609.6 mm		19.08 mm	0.751 in
Parker Chomerics 77-12-3601-02400	0.09 in	2.29 mm			Fabric Over Foam	D-Shape	24 Months	Adhesive	-40 °C	70 °C	Date of Shipment	Nickel-Copper over Urethane Foam	70 °F	21 °C	24 in	609.6 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 6.80
		24	$ 5.86
		120	$ 5.09
		264	$ 4.86
		504	$ 4.43
		1008	$ 3.86
		2520	$ 3.72
