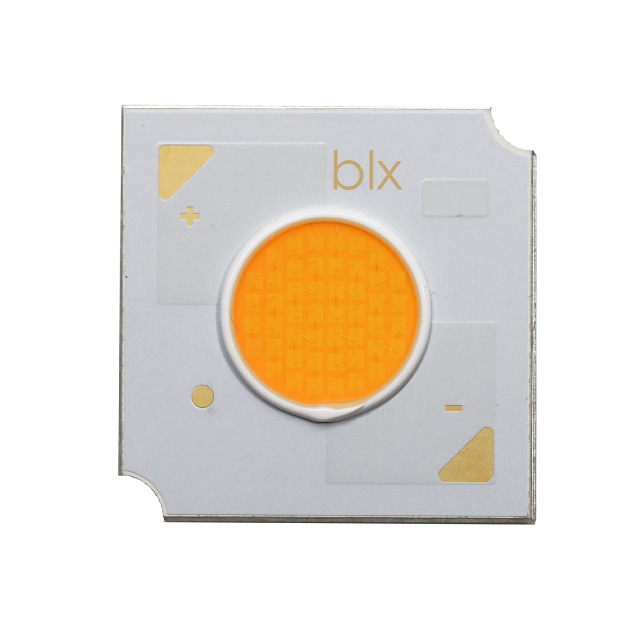

BXRH-27G3000-D-73

Active

BRIDGELUX

LED MODULES UNI-COLOR WHITE 2-PIN COB TUBE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BXRH-27G3000-D-73

Active

BRIDGELUX

LED MODULES UNI-COLOR WHITE 2-PIN COB TUBE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BXRH-27G3000-D-73

CCT (K)	2700 K
Color	White, Warm
Configuration	Square
CRI (Color Rendering Index)	90
Current - Max [Max]	960 mA
Height [z]	1.63 mm
Lens Type	Flat
Light Emitting Surface (LES) [diameter]	9.2 mm
Lumens/Watt @ Current - Test	96 lm/W
Luminous Flux @ Current/Temperature	2375 lm
Size / Dimension [x]	19 mm
Size / Dimension [y]	19 mm
Temperature - Test	85 °C
Type	Chip On Board (COB)
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	35.4 V

BXRH-27 Series

Part	Lumens/Watt @ Current - Test	Light Emitting Surface (LES) [diameter]	Lens Type	Luminous Flux @ Current/Temperature	Color	Configuration	Current - Max [Max]	Viewing Angle	CCT (K)	CRI (Color Rendering Index)	Voltage - Forward (Vf) (Typ)	Height [z]	Type	Temperature - Test	Size / Dimension [y]	Size / Dimension [x]	Current - Test
BRIDGELUX BXRH-27H1000-G-83	97 lm/W	6.6 mm	Flat	1237 lm	Warm White	Square	1.2 A	120 °	2700 K	97	18.3 V	1.63 mm	Chip On Board (COB)
BRIDGELUX BXRH-27E3000-D-73	115 lm/W	9.2 mm	Flat	2857 lm	Warm White	Square	960 mA	120 °	2700 K	80	35.4 V	1.63 mm	Chip On Board (COB)	85 °C	19 mm	19 mm
BRIDGELUX BXRH-27H3000-D-73	85 lm/W	9.2 mm	Flat	2105 lm	Warm White	Square	960 mA	120 °	2700 K	97	35.4 V	1.63 mm	Chip On Board (COB)	85 °C	19 mm	19 mm
BRIDGELUX BXRH-27G1000-B-83	109 lm/W	6.6 mm	Flat	1395 lm	Warm White	Square	600 mA	120 °	2700 K	90	36.6 V	1.63 mm	Chip On Board (COB)				350 mA
BRIDGELUX BXRH-27E1000-B-83	132 lm/W	6.6 mm	Flat	1691 lm	Warm White	Square	600 mA	120 °	2700 K	80	36.6 V	1.63 mm	Chip On Board (COB)				350 mA
BRIDGELUX BXRH-27G1000-C-23	79 lm/W	6.6 mm	Flat	1084 lm	Warm White	Square	1.05 A	112 °	2700 K	90	18.3 V	1.7 mm	Chip On Board (COB)		13.35 mm	13.35 mm	750 mA
BRIDGELUX BXRH-27G3000-D-73	96 lm/W	9.2 mm	Flat	2375 lm	Warm White	Square	960 mA	120 °	2700 K	90	35.4 V	1.63 mm	Chip On Board (COB)	85 °C	19 mm	19 mm
BRIDGELUX BXRH-27H0600-A-73	76 lm/W	5.2 mm	Flat	471 lm	Warm White	Square	240 mA	120 °	2700 K	97	35.4 V	1.63 mm	Chip On Board (COB)	85 °C	12.5 mm	12.5 mm	175 mA
BRIDGELUX BXRH-27S1001-B-73	90 lm/W	6.6 mm	Flat	1147 lm	Warm White	Square	480 mA	120 °	2700 K	98	36.4 V	1.63 mm	Chip On Board (COB)				350 mA
BRIDGELUX BXRH-27H1000-B-83	97 lm/W	6.6 mm	Flat	1237 lm	Warm White	Square	600 mA	120 °	2700 K	97	36.6 V	1.63 mm	Chip On Board (COB)				350 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	25	$ 3.29
		50	$ 3.18
		125	$ 2.94

Description

General part information

BXRH-27 Series

LED Lighting COBs Engines Modules Chip On Board (COB) Gen 7 V9 HD Array White, Warm Square

Documents

Technical documentation and resources
