1.10.051.204/0001

Active

RAFI USA

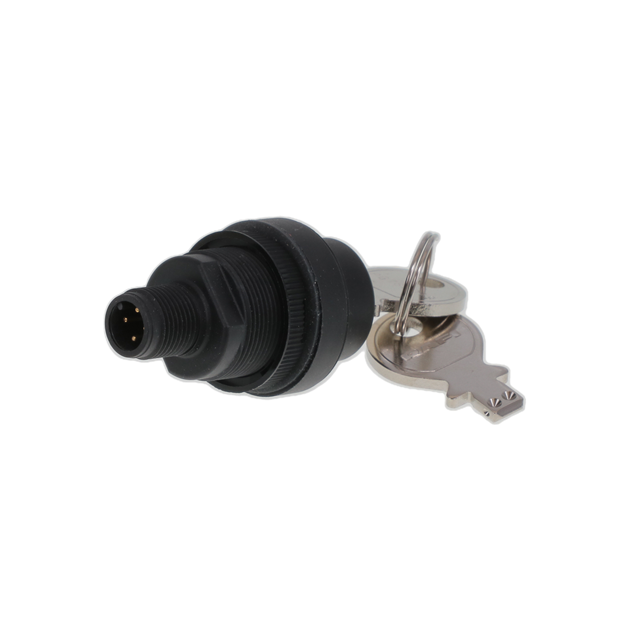

SWITCH KEYLK 2POS SPDT 100MA 32V

Search across all available documentation for this part.

Active

RAFI USA

SWITCH KEYLK 2POS SPDT 100MA 32V

Technical Specifications

Parameters and characteristics for this part

Specification	1.10.051.204/0001

Actuator Type	Flat Key
Angle of Throw	90 °
Circuit	SPDT
Contact Material	Gold (Au)
Contact Timing	Not Specified
Current Rating (Amps)	100 mA
Depth Behind Flange	30 mm
Electrical Life	50000 Cycles
Features	IP65
Key Removable Positions	Center
Number of Positions	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Panel Cutout Dimensions [diameter]	22.3 mm
Switch Function	On-On
Termination Style	Connector
Voltage Rating - DC	32 V

Part	Angle of Throw	Contact Material	Circuit	Termination Style	Actuator Type	Contact Timing	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Key Removable Positions	Mechanical Life	Current Rating (Amps)	Features	Depth Behind Flange	Switch Function	Panel Cutout Dimensions [diameter]	Number of Positions	Electrical Life
RAFI USA 1.10.051.201/0001	40 °	Gold (Au)	SPDT	Connector	Flat Key	Not Specified	32 V	85 °C	-40 °C	Center	300000 Cycles	100 mA	IP65	30 mm	On-Mom	22.3 mm	2
RAFI USA 1.10.051.204/0001	90 °	Gold (Au)	SPDT	Connector	Flat Key	Not Specified	32 V	85 °C	-40 °C	Center		100 mA	IP65	30 mm	On-On	22.3 mm	2	50000 Cycles
RAFI USA 1.10.051.604/0001	90 °	Gold (Au)	SPDT	Connector	Flat Key	Not Specified	32 V	85 °C	-40 °C	All		100 mA	IP65	30 mm	On-On	22.3 mm	2	50000 Cycles

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Keylock Switch 2 Position SPDT 100mA (DC) AC 32 VDC Panel Mount
