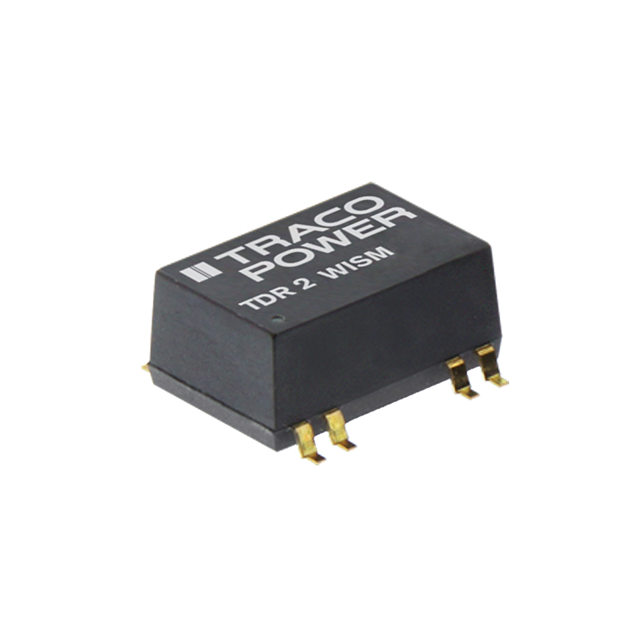

TDR 2-1222WISM

Active

Traco Power

DC DC CONVERTER +/-12V 2W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TDR 2-1222WISM

Active

Traco Power

DC DC CONVERTER +/-12V 2W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TDR 2-1222WISM

Applications	ITE (Commercial)
Current - Output (Max)	83 mA
Current - Output (Max)	83 mA
Efficiency	81 %
Features	Remote On/Off, SCP
Mounting Type	Surface Mount
Number of Outputs	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	14-SMD Module, 7 Leads
Power (Watts)	2 W
Size / Dimension [x]	18.9 mm
Size / Dimension [x]	0.74 in
Size / Dimension [y]	12.8 mm
Size / Dimension [y]	0.5 in
Size / Dimension [z]	8.7 mm
Size / Dimension [z]	0.34 in
Type	Isolated Module
Voltage - Input (Max) [Max]	18 V
Voltage - Input (Min) [Min]	4.5 V
Voltage - Isolation	1.6 kV
Voltage - Output 1	12 V
Voltage - Output 2	-12 V

TDR 2 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Current - Output (Max)	Current - Output (Max)	Voltage - Input (Min) [Min]	Voltage - Output 1	Number of Outputs	Mounting Type	Voltage - Output 2	Efficiency	Type	Package / Case	Voltage - Isolation	Applications	Features	Power (Watts)	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Current - Output (Max)
Traco Power TDR 2-0522	85 °C	-40 °C	8.7 mm	18.9 mm	12.8 mm	0.5 in	0.34 in	0.74 in	83 mA	83 mA	4.5 V	12 V	2	Through Hole	-12 V	81 %	Isolated Module	14-DIP Module 7 Leads	1.6 kV	ITE (Commercial)	Remote On/Off SCP	2 W	9 V
Traco Power TDR 2-1212SM	85 °C	-40 °C	8.7 mm	18.9 mm	12.8 mm	0.5 in	0.34 in	0.74 in			9 V	12 V	1	Surface Mount		81 %	Isolated Module	14-SMD Module 7 Leads	1.6 kV	ITE (Commercial)	Remote On/Off SCP	2 W	18 V	167 mA
Traco Power TDR 2-0511SM	85 °C	-40 °C	8.7 mm	18.9 mm	12.8 mm	0.5 in	0.34 in	0.74 in			4.5 V	5 V	1	Surface Mount		80 %	Isolated Module	14-SMD Module 7 Leads	1.6 kV	ITE (Commercial)	Remote On/Off SCP	2 W	9 V	400 mA
Traco Power TDR 2-1211SM	85 °C	-40 °C	8.7 mm	18.9 mm	12.8 mm	0.5 in	0.34 in	0.74 in			9 V	5 V	1	Surface Mount		81 %	Isolated Module	14-SMD Module 7 Leads	1.6 kV	ITE (Commercial)	Remote On/Off SCP	2 W	18 V	400 mA
Traco Power TDR 2-2422SM	85 °C	-40 °C	8.7 mm	18.9 mm	12.8 mm	0.5 in	0.34 in	0.74 in	83 mA	83 mA	18 V	12 V	2	Surface Mount	-12 V	84 %	Isolated Module	14-SMD Module 7 Leads	1.6 kV	ITE (Commercial)	Remote On/Off SCP	2 W	36 V
Traco Power TDR 2-4823WI	85 °C	-40 °C	8.7 mm	18.9 mm	12.8 mm	0.5 in	0.34 in	0.74 in		67 mA	18 V	15 V	2	Through Hole	-15 V	81 %	Isolated Module	14-DIP Module 7 Leads	1.6 kV	ITE (Commercial)	Remote On/Off SCP	2 W	75 V		67 mA
Traco Power TDR 2-4822	85 °C	-40 °C	8.7 mm	18.9 mm	12.8 mm	0.5 in	0.34 in	0.74 in	83 mA	83 mA	36 V	12 V	2	Through Hole	-12 V	83 %	Isolated Module	14-DIP Module 7 Leads	1.6 kV	ITE (Commercial)	Remote On/Off SCP	2 W	75 V
Traco Power TDR 2-1222WISM	85 °C	-40 °C	8.7 mm	18.9 mm	12.8 mm	0.5 in	0.34 in	0.74 in	83 mA	83 mA	4.5 V	12 V	2	Surface Mount	-12 V	81 %	Isolated Module	14-SMD Module 7 Leads	1.6 kV	ITE (Commercial)	Remote On/Off SCP	2 W	18 V
Traco Power TDR 2-2412	85 °C	-40 °C	8.7 mm	18.9 mm	12.8 mm	0.5 in	0.34 in	0.74 in			18 V	12 V	1	Through Hole		84 %	Isolated Module	14-DIP Module 7 Leads	1.6 kV	ITE (Commercial)	Remote On/Off SCP	2 W	36 V	167 mA
Traco Power TDR 2-0522SM	85 °C	-40 °C	8.7 mm	18.9 mm	12.8 mm	0.5 in	0.34 in	0.74 in	83 mA	83 mA	4.5 V	12 V	2	Surface Mount	-12 V	81 %	Isolated Module	14-SMD Module 7 Leads	1.6 kV	ITE (Commercial)	Remote On/Off SCP	2 W	9 V
