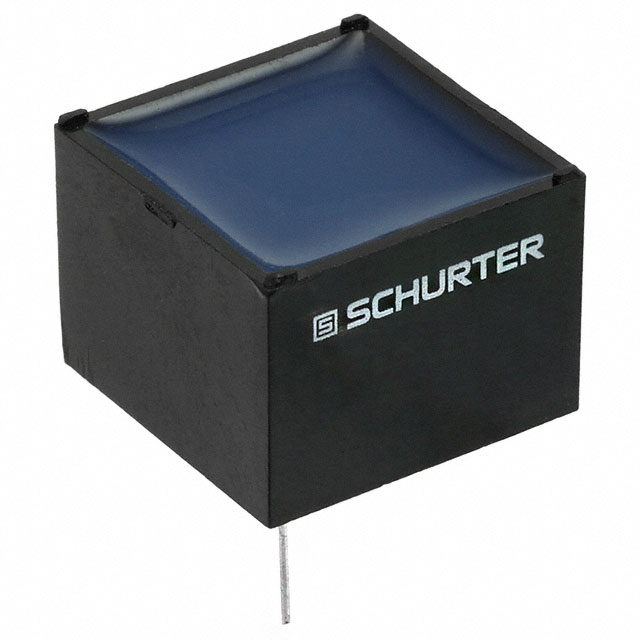

CMC 1.4A 2LN TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DS1-20-0002
ActiveSCHURTER Inc.
CMC 1.4A 2LN TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DS1-20-0002 |
|---|---|
| Current Rating (Max) [Max] | 1.4 A |
| DC Resistance (DCR) (Max) [Max] | 175 mOhm |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Radial |
| Size / Dimension [x] | 0.787 in |
| Size / Dimension [x] | 20 mm |
| Size / Dimension [y] | 0.787 in |
| Size / Dimension [y] | 20 mm |
| Voltage Rating - DC | 600 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 150 | $ 5.25 | |
Description
General part information
DS1-20 Series
2 Line Common Mode Choke Through Hole 1.4A DCR 175mOhm
