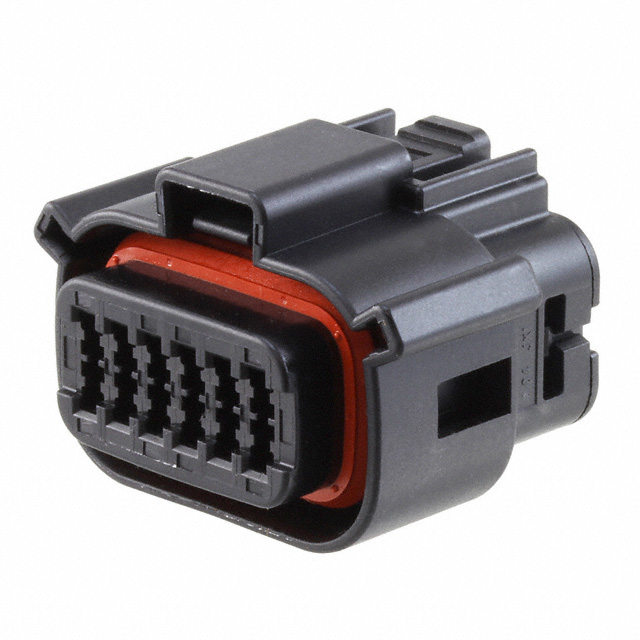

0367921201
ActiveMolex
CONN RCPT HSG 12POS 3.20MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 0367921201 |
|---|---|
| Color | Black |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Holder |
| Insulation Material | Polyamide (PA), Nylon |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 12 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.126 in |
| Pitch [x] | 3.2 mm |
| Row Spacing | 0.233 in |
| Row Spacing | 5.93 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.14 | |
| 10 | $ 0.97 | |||
| 100 | $ 0.80 | |||
| 1800 | $ 0.74 | |||
Description
General part information
036792 Series
12 Rectangular Connectors - Housings Receptacle Black 0.126" (3.20mm)
