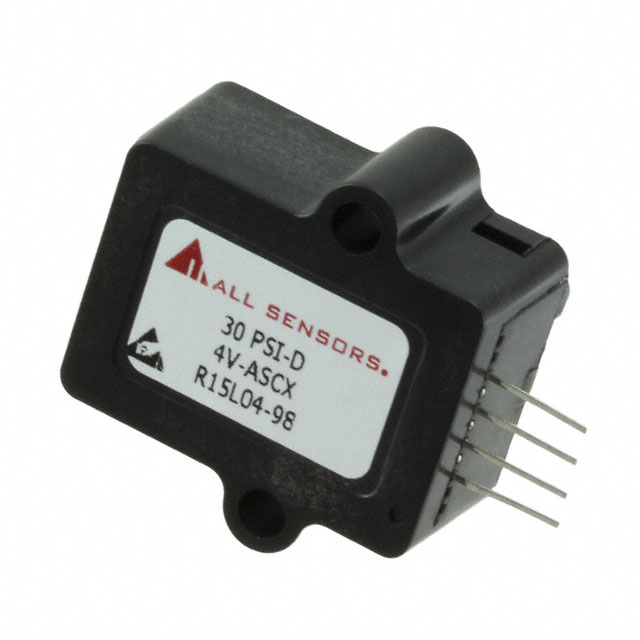

30 PSI-D-4V-ASCX

Active

Amphenol All Sensors Corporation

SENSOR 30PSID 0.19" 4.75V 4SIP

Search across all available documentation for this part.

Active

Amphenol All Sensors Corporation

SENSOR 30PSID 0.19" 4.75V 4SIP

Technical Specifications

Parameters and characteristics for this part

Specification	30 PSI-D-4V-ASCX

Accuracy	0.5 %
Applications	Board Mount
Features	Temperature Compensated, Amplified Output
Maximum Pressure	100 PSI
Maximum Pressure	689.48 kPa
Mounting Type	Through Hole
Operating Pressure	206.84 kPa
Operating Pressure	30 PSI
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-25 °C
Output [Max]	4.75 V
Output [Min]	0.25 V
Output Type	Wheatstone Bridge
Package / Case	4-SIP
Port Size	4.826 mm, 4.8 mm
Port Size	Male, Tube, Dual
Port Style	Barbless
Pressure Type	Differential
Supplier Device Package	4-SIP
Termination Style	PC Pin
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	4.5 V

Part	Output [Max]	Output [Min]	Operating Pressure	Operating Pressure	Port Style	Features	Accuracy	Package / Case	Voltage - Supply [Min]	Voltage - Supply [Max]	Pressure Type	Termination Style	Port Size	Port Size	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Mounting Type	Output Type	Maximum Pressure	Maximum Pressure
Amphenol All Sensors Corporation 30 PSI-D-4V-ASCX	4.75 V	0.25 V	206.84 kPa	30 PSI	Barbless	Amplified Output Temperature Compensated	0.5 %	4-SIP	4.5 V	5.5 V	Differential	PC Pin	4.8 mm 4.826 mm	Dual Male Tube	4-SIP	-25 °C	105 ░C	Board Mount	Through Hole	Wheatstone Bridge	100 PSI	689.48 kPa
Amphenol All Sensors Corporation 15 PSI-D-4V-ASCX	4.75 V	0.25 V	103.42 kPa	15 PSI	Barbless	Amplified Output Temperature Compensated	0.5 %	4-SIP	4.5 V	5.5 V	Differential	PC Pin	4.8 mm 4.826 mm	Dual Male Tube	4-SIP	-25 °C	105 ░C	Board Mount	Through Hole	Wheatstone Bridge	45 PSI	310.26 kPa
Amphenol All Sensors Corporation 100 PSI-D-4V-ASCX	4.75 V	0.25 V	689.48 kPa	100 PSI	Barbless	Amplified Output Temperature Compensated	0.5 %	4-SIP	4.5 V	5.5 V	Differential	PC Pin	4.8 mm 4.826 mm	Dual Male Tube	4-SIP	-25 °C	105 ░C	Board Mount	Through Hole	Wheatstone Bridge	150 PSI	1034.21 kPa

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pressure Sensor ±30PSI (±206.84kPa) Differential Male - 0.19" (4.8mm) Tube, Dual 0.25 V ~ 4.75 V 4-SIP
