LQW21HN1R2J00L
ActiveMurata Power Solutions Inc.
FIXED IND 1.2UH 100MA 3.12OHM SM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LQW21HN1R2J00L
ActiveMurata Power Solutions Inc.
FIXED IND 1.2UH 100MA 3.12OHM SM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LQW21HN1R2J00L |
|---|---|
| Current Rating (Amps) | 100 mA |
| Frequency - Self Resonant | 400 MHz |
| Height - Seated (Max) [Max] | 0.039 " |
| Height - Seated (Max) [Max] | 1 mm |
| Inductance | 1.2 µH |
| Inductance Frequency - Test | 10 MHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 0805 |
| Q @ Freq | 30, 100 MHz |
| Shielding | Unshielded |
| Size / Dimension [x] | 2 mm |
| Size / Dimension [x] | 0.079 in |
| Size / Dimension [y] | 0.047 in |
| Size / Dimension [y] | 1.2 mm |
| Supplier Device Package | 0805 (2012 Metric) |
| Tolerance | 5 % |
| Type | Wirewound, Drum Core |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.39 | |
| 10 | $ 0.34 | |||
| 25 | $ 0.31 | |||
| 50 | $ 0.28 | |||
| 100 | $ 0.25 | |||
| 250 | $ 0.24 | |||
| 500 | $ 0.20 | |||
| 1000 | $ 0.18 | |||
| Digi-Reel® | 1 | $ 0.39 | ||
| 10 | $ 0.34 | |||
| 25 | $ 0.31 | |||
| 50 | $ 0.28 | |||
| 100 | $ 0.25 | |||
| 250 | $ 0.24 | |||
| 500 | $ 0.20 | |||
| 1000 | $ 0.18 | |||
| Tape & Reel (TR) | 3000 | $ 0.17 | ||
| 6000 | $ 0.17 | |||
| 15000 | $ 0.16 | |||
| 30000 | $ 0.16 | |||
Description
General part information
LQW21HN Series

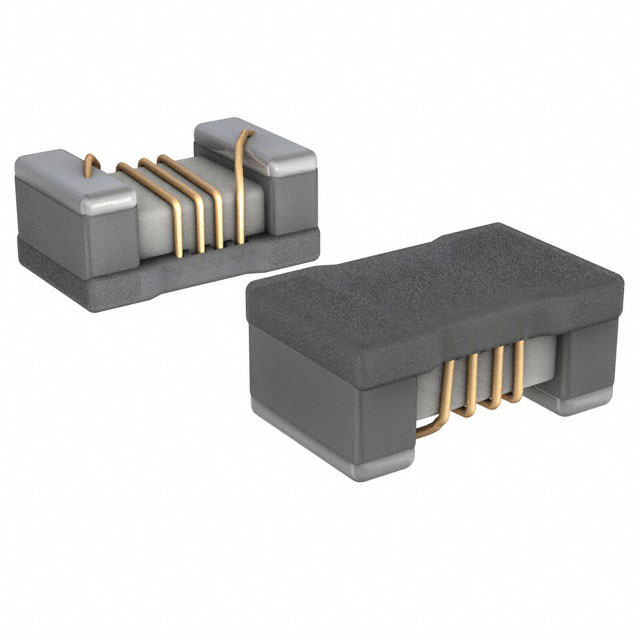

1.2 µH Unshielded Drum Core, Wirewound Inductor 100 mA 3.12Ohm Max 0805 (2012 Metric)
