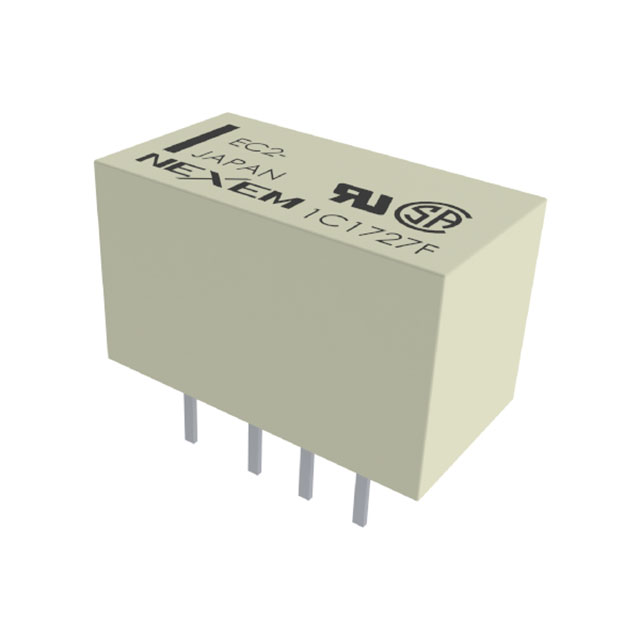

EC2-4.5SNJ

Active

KEMET

RELAY

Search across all available documentation for this part.

Active

KEMET

RELAY

Technical Specifications

Parameters and characteristics for this part

Specification	EC2-4.5SNJ

null

Part	Contact Form	Operate Time	Relay Type	Coil Voltage	Contact Rating (Current)	Approval Agency	Load - Max Switching	Termination Style	Coil Current	Release Time	Contact Material	Coil Resistance	Must Operate Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Coil Type	Mounting Type	Switching Voltage	Must Release Voltage
KEMET EC2-4.5TNU	DPDT (2 Form C)	2 ms	General Purpose	4.5 VDC	2 A	CSA TUV UL	440 W 500 VA	PC Pin	31.1 mA	1 ms	Gold Alloy Silver Alloy	145 Ohms	3.38 VDC	85 °C	-40 °C	Latching Dual Coil	Through Hole	220 VDC 250 VAC
KEMET EC2-4.5SNJ
KEMET EC2-4.5NU	DPDT (2 Form C)	2 ms	General Purpose	4.5 VDC	2 A	CSA TUV UL	440 W 500 VA	PC Pin	31.1 mA	1 ms	Gold Alloy Silver Alloy	145 Ohms	3.38 VDC	85 °C	-40 °C	Non Latching	Through Hole	220 VDC 250 VAC	0.45 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	61	$ 1.17

General part information

Relay

Technical documentation and resources

No documents available
