1553 WG005

Active

ALPHA WIRE

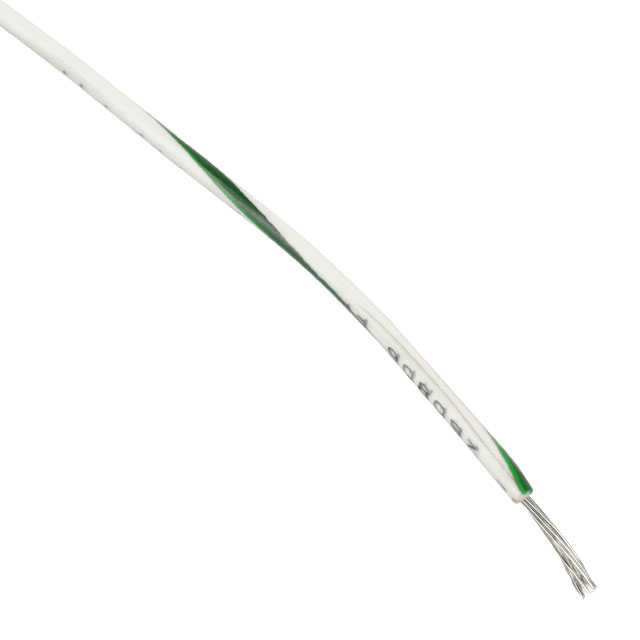

HOOK-UP STRND 20AWG WHT/GRN 100'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHook-Up Wire Catalog

1553 WG005

Active

ALPHA WIRE

HOOK-UP STRND 20AWG WHT/GRN 100'

Deep-Dive with AI

DocumentsHook-Up Wire Catalog

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1553 WG005

Cable Type	Hook-Up
Conductor Material	Copper, Tinned
Conductor Strand [custom]	30 AWG
Conductor Strand [custom]	10
Jacket (Insulation) Diameter [diameter]	0.069 in
Jacket (Insulation) Diameter [diameter]	1.75 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.016 in
Jacket (Insulation) Thickness	0.41 mm
Length [x]	30.5 m
Length [x]	100 ft
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Qualification	MIL-W-76B Type MW
Voltage	1000 V
Wire Gauge	20 AWG

1553 Series

Part	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Voltage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Material	Cable Type	Length [x]	Length [x]	Conductor Strand [custom]	Conductor Strand [custom]	Jacket Color	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge	Qualification	Length	Length
ALPHA WIRE 1553 BR005	Copper Tinned	0.069 in	1.75 mm	1000 V	0.016 in	0.41 mm	Poly-Vinyl Chloride (PVC)	Hook-Up	30.5 m	100 ft	30 AWG	10	Brown	-40 °C	80 C	20 AWG	MIL-W-76B Type MW
ALPHA WIRE 1553 BL001	Copper Tinned	0.069 in	1.75 mm	1000 V	0.016 in	0.41 mm	Poly-Vinyl Chloride (PVC)	Hook-Up			30 AWG	10	Blue	-40 °C	80 C	20 AWG	MIL-W-76B Type MW	1000 ft	304.8 m
ALPHA WIRE 1553 WH001	Copper Tinned	0.069 in	1.75 mm	1000 V	0.016 in	0.41 mm	Poly-Vinyl Chloride (PVC)	Hook-Up			30 AWG	10		-40 °C	80 C	20 AWG	MIL-W-76B Type MW	1000 ft	304.8 m
ALPHA WIRE 1553 RD005	Copper Tinned	0.069 in	1.75 mm	1000 V	0.016 in	0.41 mm	Poly-Vinyl Chloride (PVC)	Hook-Up	30.5 m	100 ft	30 AWG	10	Red	-40 °C	80 C	20 AWG	MIL-W-76B Type MW
ALPHA WIRE 1553 SL005	Copper Tinned	0.069 in	1.75 mm	1000 V	0.016 in	0.41 mm	Poly-Vinyl Chloride (PVC)	Hook-Up	30.5 m	100 ft	30 AWG	10	Slate	-40 °C	80 C	20 AWG	MIL-W-76B Type MW
ALPHA WIRE 1553 WG005	Copper Tinned	0.069 in	1.75 mm	1000 V	0.016 in	0.41 mm	Poly-Vinyl Chloride (PVC)	Hook-Up	30.5 m	100 ft	30 AWG	10		-40 °C	80 C	20 AWG	MIL-W-76B Type MW
ALPHA WIRE 1553 WV001	Copper Tinned	0.069 in	1.75 mm	1000 V	0.016 in	0.41 mm	Poly-Vinyl Chloride (PVC)	Hook-Up			30 AWG	10	White Violet Stripe	-40 °C	80 C	20 AWG	MIL-W-76B Type MW	1000 ft	304.8 m
ALPHA WIRE 1553 GR005	Copper Tinned	0.069 in	1.75 mm	1000 V	0.016 in	0.41 mm	Poly-Vinyl Chloride (PVC)	Hook-Up	30.5 m	100 ft	30 AWG	10	Green	-40 °C	80 C	20 AWG	MIL-W-76B Type MW
ALPHA WIRE 1553 SL001	Copper Tinned	0.069 in	1.75 mm	1000 V	0.016 in	0.41 mm	Poly-Vinyl Chloride (PVC)	Hook-Up			30 AWG	10	Slate	-40 °C	80 C	20 AWG	MIL-W-76B Type MW	1000 ft	304.8 m
ALPHA WIRE 1553 WN005	Copper Tinned	0.069 in	1.75 mm	1000 V	0.016 in	0.41 mm	Poly-Vinyl Chloride (PVC)	Hook-Up	30.5 m	100 ft	30 AWG	10	White Brown Stripe	-40 °C	80 C	20 AWG	MIL-W-76B Type MW

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 70.25
		3	$ 64.97
		5	$ 61.67
		10	$ 58.05
		25	$ 54.09
		50	$ 51.12
		100	$ 48.48

Description

General part information

1553 Series

20 AWG Hook-Up Wire 10/30 White, Green Stripe 1000V 100.0' (30.5m)

Documents

Technical documentation and resources

Hook-Up Wire Catalog

Datasheet
