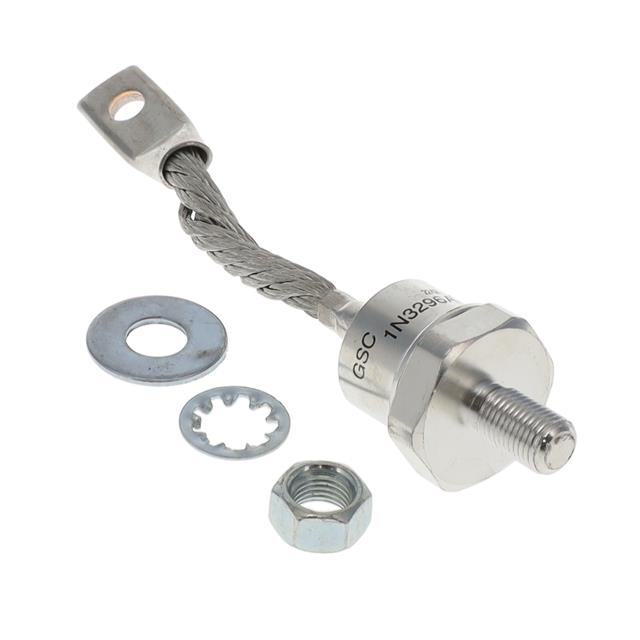

1N3296A

Active

GeneSiC Semiconductor

DIODE SWITCHING 1.2KV 100A 2-PIN DO-8

Search across all available documentation for this part.

Active

GeneSiC Semiconductor

DIODE SWITCHING 1.2KV 100A 2-PIN DO-8

Technical Specifications

Parameters and characteristics for this part

Specification	1N3296A

Current - Average Rectified (Io)	100 A
Current - Reverse Leakage @ Vr	9 mA
Mounting Type	Chassis, Stud Mount
Operating Temperature - Junction [Max]	200 C
Operating Temperature - Junction [Min]	-40 °C
Package / Case	Stud, DO-8, DO-205AA
Speed	Standard Recovery >500ns
Speed	200 mA
Supplier Device Package	DO-8
Supplier Device Package	DO-205AA
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	1.2 kV
Voltage - Forward (Vf) (Max) @ If	1.5 V

Part	Supplier Device Package	Supplier Device Package	Package / Case	Technology	Mounting Type	Current - Average Rectified (Io)	Speed	Speed	Current - Reverse Leakage @ Vr	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Voltage - Forward (Vf) (Max) @ If	Voltage - DC Reverse (Vr) (Max) [Max]
GeneSiC Semiconductor 1N3296A	DO-8	DO-205AA	DO-205AA DO-8 Stud	Standard	Chassis Stud Mount	100 A	Standard Recovery >500ns	200 mA	9 mA	200 C	-40 °C	1.5 V	1.2 kV

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 1200 V 100A Chassis, Stud Mount DO-205AA (DO-8)
