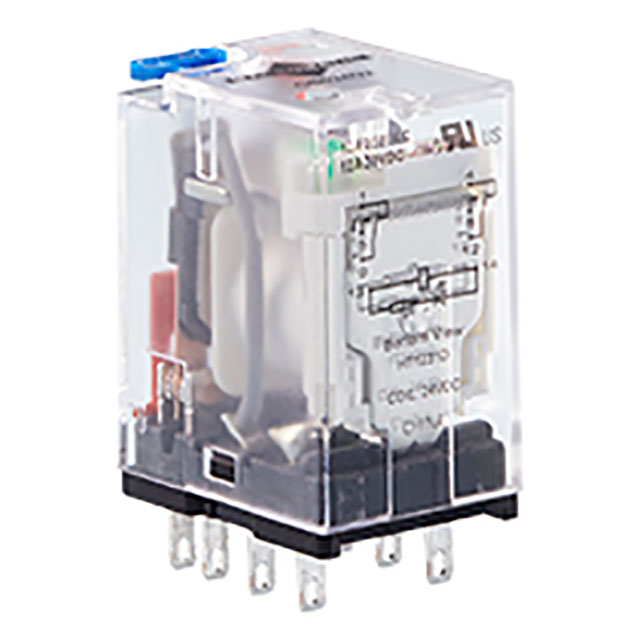

GB024D2

Active

Macromatic Industrial Controls

RELAY GEN PURPOSE DPDT 12A 24V

Search across all available documentation for this part.

Active

Macromatic Industrial Controls

RELAY GEN PURPOSE DPDT 12A 24V

Technical Specifications

Parameters and characteristics for this part

Specification	GB024D2

Coil Type	Non Latching
Coil Voltage	24 VDC
Contact Form	DPDT (2 Form C)
Contact Rating (Current)	12 A
Features	Test Button, Lighted Indicator
Mounting Type	Socketable
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Switching Voltage [Max]	30 VDC, 250 VAC
Termination Style	Plug In

Part	Mounting Type	Contact Rating (Current)	Coil Type	Coil Voltage	Termination Style	Features	Operating Temperature [Min]	Operating Temperature [Max]	Contact Form	Relay Type	Switching Voltage [Max]
Macromatic Industrial Controls GB024D2	Socketable	12 A	Non Latching	24 VDC	Plug In	Lighted Indicator Test Button	-40 °C	70 °C	DPDT (2 Form C)	General Purpose	30 VDC 250 VAC
Macromatic Industrial Controls GB024D4	Socketable	6 A	Non Latching	24 VDC	Plug In		-40 °C	70 °C	4PDT (4 Form C)	General Purpose	30 VDC 250 VAC
Macromatic Industrial Controls GB024D3	Socketable	10 A	Non Latching	24 VDC	Plug In	Lighted Indicator Test Button	-40 °C	70 °C	3PDT (3 Form C)	General Purpose	30 VDC 250 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 11.74

General part information

General Purpose Relay DPDT (2 Form C) 24VDC Coil Socketable

Technical documentation and resources

No documents available
