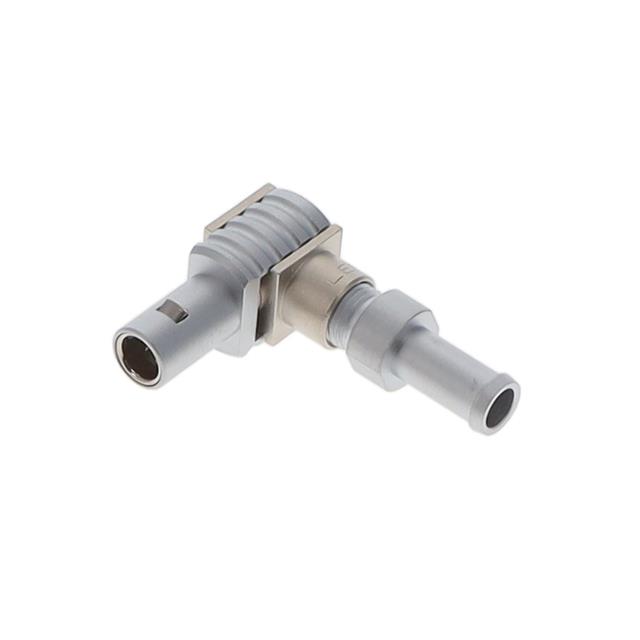

FLA.00.250.CLAC22Z

Active

LEMO

CONN R/A PLUG COAX PIN SLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FLA.00.250.CLAC22Z

Active

LEMO

CONN R/A PLUG COAX PIN SLDER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FLA.00.250.CLAC22Z

Body Finish	Chrome
Body Material	Brass
Cable Group	RG-178B, 196A
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	NIM-CAMAC CD/N 549
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polyetheretherketone (PEEK)
Fastening Type	Push-Pull
Housing Color	Silver
Impedance	50 Ohms
Ingress Protection	IP50
Mating Cycles	5000
Mounting Type	Free Hanging (In-Line), Right Angle
Operating Temperature [Max]	260 ░C
Operating Temperature [Min]	-55 °C
Shield Termination	Clamp
Voltage Rating	700 VDC

FLA.00 Series

Part	Dielectric Material	Mounting Type	Connector Style	Center Contact Plating	Body Finish	Cable Group	Impedance	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Fastening Type	Housing Color	Ingress Protection	Body Material	Center Contact Material	Shield Termination	Contact Termination	Number of Ports	Connector Type	Mating Cycles
LEMO FLA.00.650.CLAC35	Polyetheretherketone (PEEK)	Free Hanging (In-Line) Right Angle	NIM-CAMAC CD/N 549 Triaxial	Gold	Chrome	RG-403	50 Ohms	-55 °C	260 ░C	700 VDC	Push-Pull	Silver	IP50	Brass	Brass	Clamp	Solder	1	Male Pin Plug	1000
LEMO FLA.00.250.CTAC29	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line) Right Angle	NIM-CAMAC CD/N 549	Gold	Chrome		50 Ohms	-55 °C	260 ░C	700 VDC	Push-Pull	Silver	IP50	Brass	Brass	Clamp	Solder	1	Male Pin Plug	5000
LEMO FLA.00.250.NTAD52	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line) Right Angle	NIM-CAMAC CD/N 549	Gold	Nickel	RG-58	50 Ohms	-55 °C	260 ░C	700 VDC	Push-Pull	Silver	IP50	Brass	Brass	Clamp	Solder	1	Male Pin Plug	5000
LEMO FLA.00.250.NTAC31	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line) Right Angle	NIM-CAMAC CD/N 549	Gold	Nickel	RG-179B	50 Ohms	-55 °C	260 ░C	700 VDC	Push-Pull	Silver	IP50	Brass	Brass	Clamp	Solder	1	Male Pin Plug	5000
LEMO FLA.00.250.CTAC27	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line) Right Angle	NIM-CAMAC CD/N 549	Gold	Chrome	RG-179B	50 Ohms	-55 °C	260 ░C	700 VDC	Push-Pull	Silver	IP50	Brass	Brass	Clamp	Solder	1	Male Pin Plug	5000
LEMO FLA.00.250.CLAC22Z	Polyetheretherketone (PEEK)	Free Hanging (In-Line) Right Angle	NIM-CAMAC CD/N 549	Gold	Chrome	196A RG-178B	50 Ohms	-55 °C	260 ░C	700 VDC	Push-Pull	Silver	IP50	Brass	Brass	Clamp	Solder		Male Pin Plug	5000
LEMO FLA.00.325.UN
LEMO FLA.00.250.CTAC31	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line) Right Angle	NIM-CAMAC CD/N 549	Gold	Chrome	RG-179B	50 Ohms	-55 °C	260 ░C	700 VDC	Push-Pull	Silver	IP50	Brass	Brass	Clamp	Solder	1	Male Pin Plug	5000
LEMO FLA.00.250.ZTA	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line) Right Angle	NIM-CAMAC CD/N 549	Gold			50 Ohms	-55 °C	260 ░C	700 VDC	Push-Pull		IP50		Brass		Solder	1	Male Pin Plug	5000
LEMO FLA.00.250.CTAC31Z	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line) Right Angle	NIM-CAMAC CD/N 549	Gold	Chrome	RG-179B	50 Ohms	-55 °C	260 ░C	700 VDC	Push-Pull	Silver	IP50	Brass	Brass	Clamp	Solder	1	Male Pin Plug	5000

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 44.79

Description

General part information

FLA.00 Series

NIM-CAMAC CD/N 549 Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
