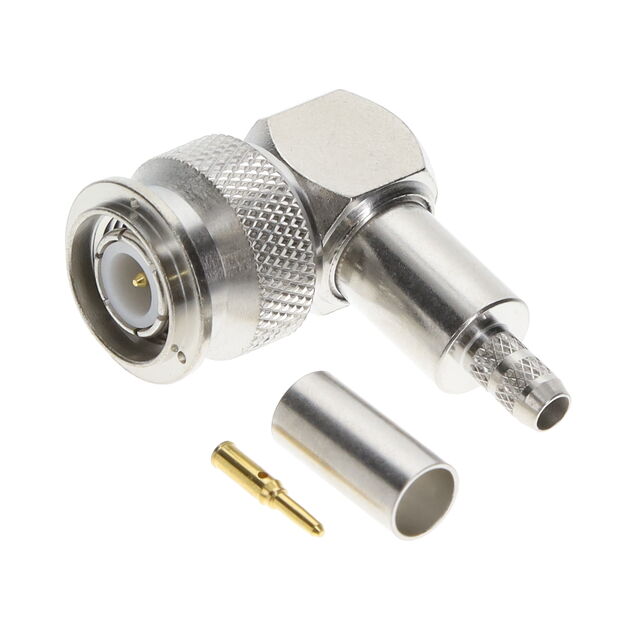

16_TNC-50-3-21/133_NE

Active

Huber+Suhner, Inc.

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

16_TNC-50-3-21/133_NE

Active

Huber+Suhner, Inc.

16_TNC-50-3-21/133_NE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	16_TNC-50-3-21/133_NE

Body Material	Brass
Cable Group	RG-400
Center Contact Plating	Gold
Connector Style	TNC
Connector Type	Male Pin, Plug
Dielectric Material	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C

16_TNC-50 Series

Part	Connector Style	Impedance	Cable Group	Connector Type	Frequency - Max [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Body Material	Dielectric Material	Center Contact Plating	Mating Cycles	Number of Ports	Mounting Type	Center Contact Material	Shield Termination	Contact Termination	Housing Color	Body Finish	Voltage Rating
Huber+Suhner, Inc. 16_TNC-50-3-21/133_NE	TNC	50 Ohms	RG-400	Male Pin Plug	11 GHz	-65 ░C	165 °C	Brass	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Gold	500	1	Free Hanging (In-Line) Right Angle
Huber+Suhner, Inc. 16_TNC-50-4-83/199_NH	TNC	50 Ohms		Male Pin Plug	11 GHz	-65 ░C	165 °C	Stainless Steel	Polytetrafluoroethylene (PTFE)	Gold	500	1	Free Hanging (In-Line) Right Angle	Brass	Crimp	Solder	Silver
Huber+Suhner, Inc. 16_TNC-50-2-119/133_NE	TNC	50 Ohms	188 316 RG-174	Male Pin Plug	11 GHz	-65 ░C	165 °C	Brass	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Gold	500	1	Free Hanging (In-Line) Right Angle	Brass	Crimp	Solder	Silver	White Bronze	500 V
Huber+Suhner, Inc. 16_TNC-50-3-28/133_NE	TNC	50 Ohms	223 400 RG-142	Male Pin Plug	11 GHz	-65 ░C	165 °C	Brass	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Gold	500	1	Free Hanging (In-Line) Right Angle	Brass	Clamp	Solder	Silver	White Bronze	500 V
Huber+Suhner, Inc. 16_TNC-50-3-112/133_NE	TNC	50 Ohms	RG-58	Male Pin Plug	11 GHz	-65 ░C	165 °C	Brass	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Gold	500	1	Free Hanging (In-Line) Right Angle	Brass	Crimp	Solder	Silver	White Bronze	500 V
Huber+Suhner, Inc. 16_TNC-50-3-111/133_NE	TNC	50 Ohms	223 400 RG-142	Male Pin Plug	11 GHz	-65 ░C	165 °C	Brass	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Gold	500	1	Free Hanging (In-Line) Right Angle	Brass	Crimp	Solder	Silver	White Bronze	500 V
Huber+Suhner, Inc. 16_TNC-50-4-101/12-_NE	TNC	50 Ohms	RG-B4C	Male Pin Plug	11 GHz	-60 °C	165 °C	Brass	Polytetrafluoroethylene (PTFE)	Gold	500	1	Free Hanging (In-Line) Right Angle	Beryllium Copper	Clamp	Crimp	Silver	Nickel	500 V
Huber+Suhner, Inc. 16_TNC-50-7-12/133_NE	TNC	50 Ohms	LMR-400	Male Pin Plug	11 GHz	-65 ░C	165 °C	Brass	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Gold	500	1	Free Hanging (In-Line) Right Angle	Brass	Clamp	Crimp	Silver	White Bronze	500 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 80.00
		10	$ 73.41
		25	$ 70.58
		50	$ 68.23
		100	$ 64.47

Description

General part information

16_TNC-50 Series

TNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle
