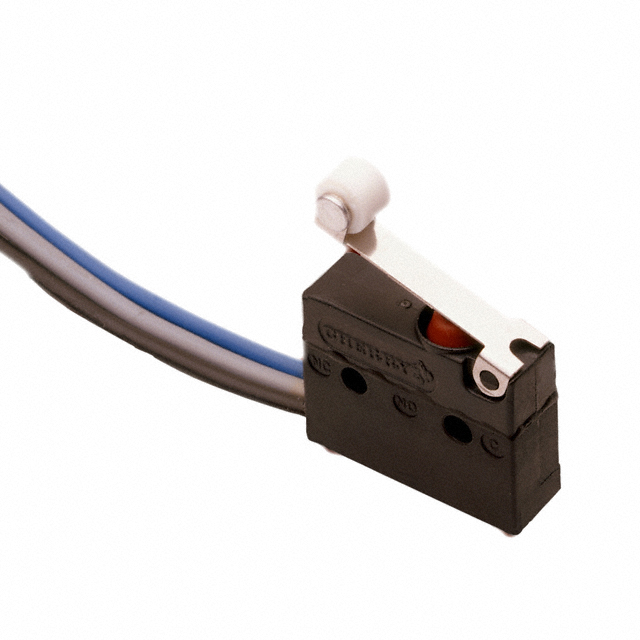

DC3CM5RB

Active

ZF Electronics

SWITCH SNAP ACT SPDT 0.1A 125V

Search across all available documentation for this part.

Active

ZF Electronics

SWITCH SNAP ACT SPDT 0.1A 125V

Technical Specifications

Parameters and characteristics for this part

Part	Overtravel	Overtravel	Operating Temperature [Min]	Operating Temperature [Max]	Operating Position	Operating Position	Switch Function	Termination Style	Operating Force	Electrical Life	Differential Travel	Differential Travel	Actuator Type	Voltage Rating - AC	Circuit	Mounting Type	Pretravel	Pretravel	Current Rating (Amps)	Mechanical Life	Ingress Protection
ZF Electronics DC3CM5RB	1.5 mm	0.06 "	-40 °C	105 ░C	0.6 in	15.2 mm	On-Mom	Wire Leads	92 gf	100000 Cycles	0.5 mm	0.02 in	Lever Roller	125 V	SPDT	Chassis Mount	4.6 mm	0.18 in	100 mA	1000000 Cycles	IP67 - Dust Tight Waterproof
ZF Electronics DC3C-A1RC	1.5 mm	0.06 "	-40 °C	120 °C	0.638 in	16.2 mm	On-Mom	Solder Lug	82 gf	100000 Cycles	0.6 mm	0.025 in	Lever Roller	125 V	SPDT	Chassis Mount	5 mm	0.197 in	100 mA	1000000 Cycles	IP67 - Dust Tight Waterproof
ZF Electronics DC3C-A1LB	1.5 mm	0.06 "	-40 °C	120 °C			On-Mom	Solder Lug	82 gf	100000 Cycles	0.8 mm	0.031 "	Lever Straight	125 V	SPDT	Chassis Mount	4.5 mm	0.178 in	100 mA	1000000 Cycles	IP67 - Dust Tight Waterproof

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Switch SPDT Chassis Mount

Technical documentation and resources

No documents available
