342-084-521-207
ActiveEDAC Inc.

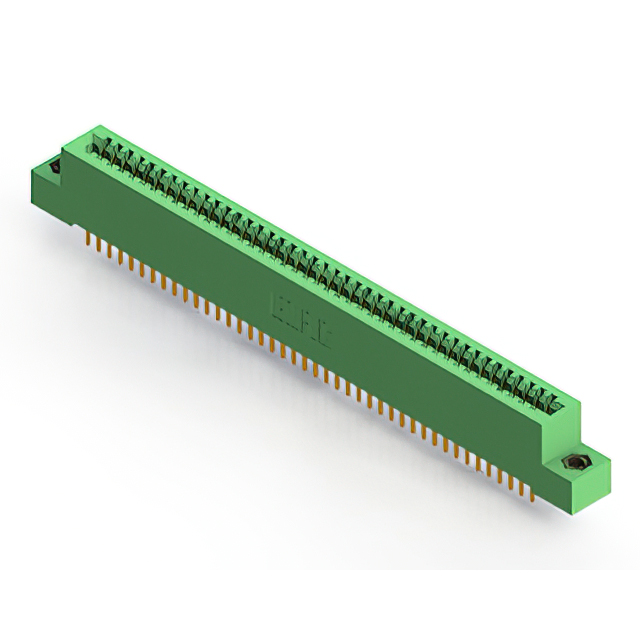

CONN EDGE DUAL FMALE 84POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
342-084-521-207
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 84POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 342-084-521-207 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Opening, Flush Mount, M3, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 84 |
| Number of Positions/Bay/Row [custom] | 42 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
342-084 Series
| Part | Read Out | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Gender | Mounting Type | Number of Positions/Bay/Row [custom] | Color | Card Type | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Number of Positions | Termination | Number of Rows | Termination Rows | Material - Insulation | Contact Finish | Pitch [x] | Pitch [x] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Dual | -40 °C | 105 ░C | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Copper Alloy | Female | Through Hole | 42 | Green | Non Specified - Dual Edge | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | 84 | Solder | 2 | 2 | Polyester Thermoplastic | Gold | 2.54 mm | 0.1 in | |
EDAC Inc. | Dual | -40 °C | 105 ░C | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Copper Alloy | Female | Board Edge Straddle Mount | 42 | Green | Non Specified - Dual Edge | 4-40 Flush Mount Threaded Insert Top Opening | 84 | Solder | 2 | 2 | Polyester Thermoplastic | Gold | 2.54 mm | 0.1 in | Card Extender | ||
EDAC Inc. | Dual | -40 °C | 105 ░C | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Copper Alloy | Female | Through Hole Right Angle | 42 | Green | Non Specified - Dual Edge | 4-40 Flush Mount Threaded Insert Top Opening | 84 | Solder Wire Wrap | 2 | 2 | Polyester Thermoplastic | Gold | 2.54 mm | 0.1 in | |||
EDAC Inc. | Dual | -40 °C | 105 ░C | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Copper Alloy | Female | Through Hole | 42 | Green | Non Specified - Dual Edge | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | 84 | Solder | 2 | 2 | Polyester Thermoplastic | Gold | 2.54 mm | 0.1 in | |
EDAC Inc. | Dual | -40 °C | 105 ░C | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Copper Alloy | Female | Through Hole | 42 | Green | Non Specified - Dual Edge | 84 | Solder | 2 | 2 | Polyester Thermoplastic | Gold | 2.54 mm | 0.1 in | ||||
EDAC Inc. | Dual | -40 °C | 105 ░C | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Copper Alloy | Female | Board Edge Straddle Mount | 42 | Green | Non Specified - Dual Edge | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | 84 | Solder | 2 | 2 | Polyester Thermoplastic | Gold | 2.54 mm | 0.1 in | Card Extender |
EDAC Inc. | Dual | -40 °C | 105 ░C | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Copper Alloy | Female | Through Hole | 42 | Green | Non Specified - Dual Edge | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | 84 | Wire Wrap | 2 | 2 | Polyester Thermoplastic | Gold | 2.54 mm | 0.1 in | |
EDAC Inc. | Dual | -40 °C | 105 ░C | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Copper Alloy | Female | Through Hole Right Angle | 42 | Green | Non Specified - Dual Edge | 84 | Solder Wire Wrap | 2 | 2 | Polyester Thermoplastic | Gold | 2.54 mm | 0.1 in | ||||
EDAC Inc. | Dual | -40 °C | 105 ░C | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Copper Alloy | Female | Board Edge Straddle Mount | 42 | Green | Non Specified - Dual Edge | 2.95 mm | 0.116 in | Floating Bobbin Flush Mount | 84 | Solder Eyelet(s) | 2 | 2 | Polyester Thermoplastic | Gold | 2.54 mm | 0.1 in | Card Extender |
EDAC Inc. | Dual | -40 °C | 105 ░C | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Copper Alloy | Female | Through Hole | 42 | Green | Non Specified - Dual Edge | Flush Mount M3 Threaded Insert Top Opening | 84 | Solder | 2 | 2 | Polyester Thermoplastic | Gold | 2.54 mm | 0.1 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 17.41 | |
Description
General part information
342-084 Series
84 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
