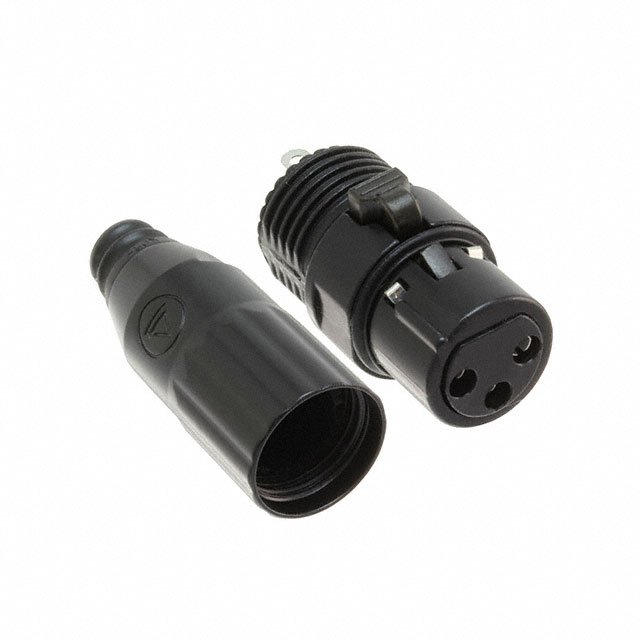

AAA3FBZ

Active

Switchcraft Inc.

CONN PLUG FMALE XLR 3POS SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AAA3FBZ

Active

Switchcraft Inc.

CONN PLUG FMALE XLR 3POS SOLDER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AAA3FBZ

Applications	Audio, Industrial, Instrumentation, Medical
Backshell Material, Plating	Chrome, Zinc
Cable Opening [diameter]	2.54 mm, 5.59 mm
Cable Opening [diameter]	0.1 in, 0.22 in
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	15 A
Fastening Type	Latch Lock
Features	Backshell, Strain Relief, Ground, Cable Clamp
Insert Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Orientation	Keyed
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Zinc Alloy
Shell Size - Insert	XLR
Shielding	Shielded
Voltage Rating	125 VAC

AAA3FB Series

Part	Contact Finish - Mating	Backshell Material, Plating	Shell Finish	Applications	Contact Material	Primary Material	Connector Type	Shell Size - Insert	Shell Material	Shielding	Insert Material	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Orientation	Mounting Type	Fastening Type	Features	Voltage Rating	Current Rating (Amps)	Cable Opening [diameter]	Cable Opening [diameter]	Color	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection
Switchcraft Inc. AAA3FBYYLP	Silver	Thermoplastic	Black Painted	Audio Instrumentation	Copper Alloy	Metal	Female Sockets Plug	XLR	Zinc Alloy	Shielded	Thermoplastic	0.205 in 5.21 mm	0.145 in 3.68 mm	Keyed	Free Hanging (In-Line)	Latch Lock	Backshell Ground Strain Relief
Switchcraft Inc. AAA3FBZ	Silver	Chrome Zinc	Chrome	Audio Industrial Instrumentation Medical	Copper Alloy	Metal	Female Sockets Plug	XLR	Zinc Alloy	Shielded	Thermoplastic			Keyed	Free Hanging (In-Line)	Latch Lock	Backshell Cable Clamp Ground Strain Relief	125 VAC	15 A	2.54 mm 5.59 mm	0.1 in 0.22 in	Black
Switchcraft Inc. AAA3FBAUZ	Gold	Chrome Zinc	Chrome	Audio Industrial Instrumentation Medical	Copper Alloy	Metal	Female Sockets Plug	XLR	Zinc Alloy	Shielded	Thermoplastic			Keyed	Free Hanging (In-Line)	Latch Lock	Backshell Cable Clamp Ground Strain Relief	125 VAC	15 A	2.54 mm 5.59 mm	0.1 in 0.22 in	Black
Switchcraft Inc. AAA3FBZH	Silver	Chrome Zinc	Chrome	Audio Instrumentation	Copper Alloy	Metal	Female Sockets Plug	XLR	Zinc Alloy	Shielded	Thermoplastic			Keyed	Free Hanging (In-Line)	Latch Lock	Backshell Cable Clamp Ground Strain Relief					Black	0.15 in	3.81 mm	7.24 mm	0.285 in	65 °C	-40 °C	IP66
Switchcraft Inc. AAA3FBAUZH	Gold	Chrome Zinc	Chrome	Audio Instrumentation	Copper Alloy	Metal	Female Sockets Plug	XLR	Zinc Alloy	Shielded	Thermoplastic			Keyed	Free Hanging (In-Line)	Latch Lock	Backshell Cable Clamp Ground Strain Relief					Black	0.15 in	3.81 mm	7.24 mm	0.285 in	65 °C	-40 °C	IP66

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.91
		10	$ 6.06
		25	$ 5.47
		50	$ 5.07
		100	$ 4.71
		300	$ 4.20
		500	$ 3.99
		1000	$ 3.73
		2500	$ 3.48

Description

General part information

AAA3FB Series

3 Position Circular Connector Plug, Female Sockets Solder Cup
