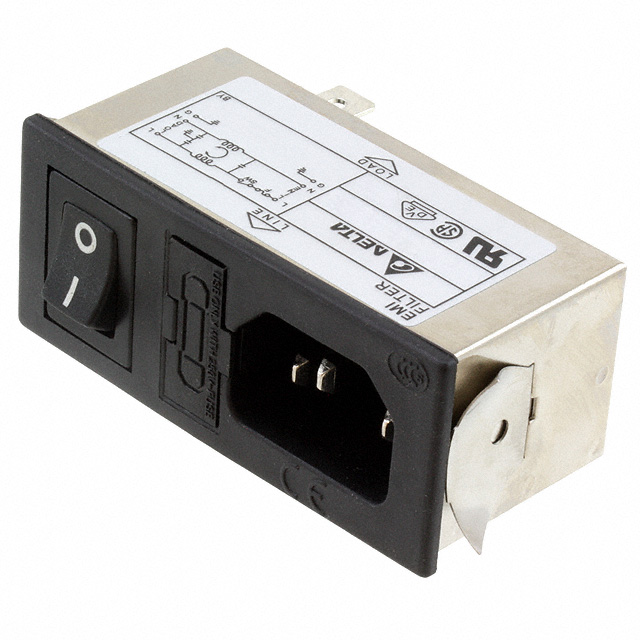

06AE2
ActiveDelta Electronics
PWR ENT MOD RCPT IEC320-C14 PNL
Deep-Dive with AI
Search across all available documentation for this part.
06AE2
ActiveDelta Electronics
PWR ENT MOD RCPT IEC320-C14 PNL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 06AE2 |
|---|---|
| Accomodates a Fuse | True |
| Approval Agency | UL, VDE, CSA |
| Connector Style | IEC 320-C14 |
| Connector Type | Receptacle, Male Blades - Module |
| Current Rating - Appliance Inlet | 6 A |
| Filter Type | Filtered (EMI, RFI) - Commercial |
| Fuse Holder, Drawer | Fuse Holder |
| Mounting Type | Panel Mount, Snap-In |
| Panel Cutout Dimensions [x] | 66 mm |
| Panel Cutout Dimensions [y] | 27 mm |
| Panel Thickness [Max] | 1.78 mm |
| Panel Thickness [Max] | 0.07 in |
| Panel Thickness [Min] | 0.04 in |
| Panel Thickness [Min] | 1.02 mm |
| Switch Features | Switch On-Off |
| Termination | Quick Connect |
| Voltage Rating - Appliance Inlet [Max] | 250 VAC |
| Voltage Rating - Appliance Inlet [Min] | 115 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 15.52 | |
| 10 | $ 13.19 | |||
| 25 | $ 12.37 | |||
| 50 | $ 11.78 | |||
| 100 | $ 10.06 | |||
| 140 | $ 10.95 | |||
| 250 | $ 9.49 | |||
| 280 | $ 10.43 | |||
| 560 | $ 9.93 | |||
Description
General part information
06AE Series
Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In
