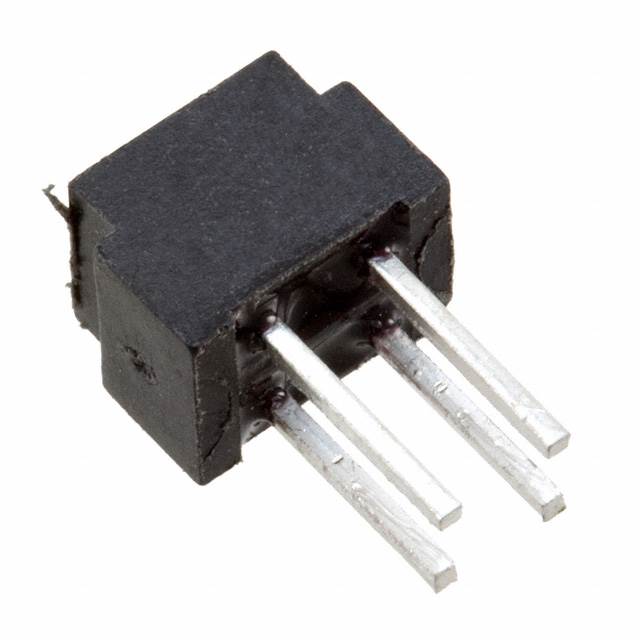

OPB608A

Active

TT Electronics/Optek Technology

SENSR OPTO TRANS 1.27MM REFL PCB

Search across all available documentation for this part.

Active

TT Electronics/Optek Technology

SENSR OPTO TRANS 1.27MM REFL PCB

Technical Specifications

Parameters and characteristics for this part

Specification	OPB608A

Current - Collector (Ic) (Max) [Max]	25 mA
Current - DC Forward (If) (Max)	50 mA
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	PCB Mount
Sensing Distance	0.05 in
Sensing Distance	1.27 mm
Sensing Method	Reflective
Voltage - Collector Emitter Breakdown (Max) [Max]	30 V

Part	Package / Case	Mounting Type	Voltage - Collector Emitter Breakdown (Max) [Max]	Sensing Distance	Sensing Distance	Operating Temperature [Max]	Operating Temperature [Min]	Current - Collector (Ic) (Max) [Max]	Sensing Method	Current - DC Forward (If) (Max)	Current - DC Forward (If) (Max) [Max]
TT Electronics/Optek Technology OPB608A	PCB Mount	Through Hole	30 V	0.05 in	1.27 mm	85 °C	-40 °C	25 mA	Reflective	50 mA
TT Electronics/Optek Technology OPB608R	PCB Mount	Through Hole	30 V	0.05 in	1.27 mm	85 °C	-40 °C	25 mA	Reflective	50 mA
TT Electronics/Optek Technology OPB608V	PCB Mount	Through Hole	30 V	0.05 in	1.27 mm	70 °C	0 °C	25 mA	Reflective		12 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Reflective Optical Sensor 0.050" (1.27mm) PCB Mount
